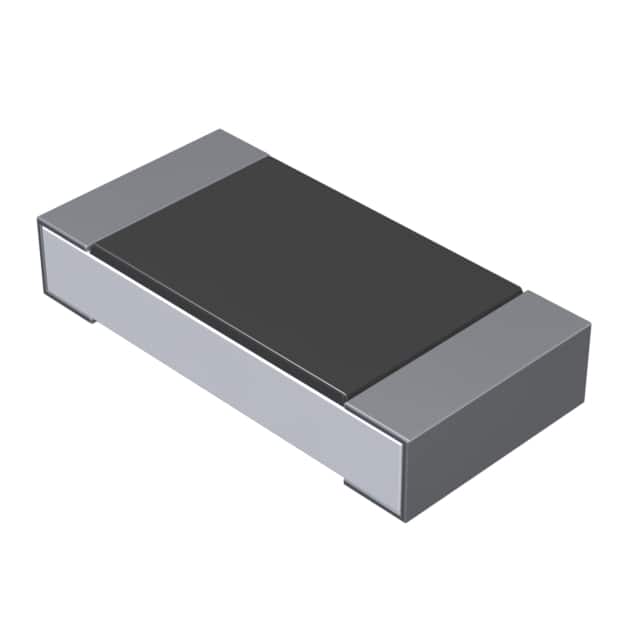

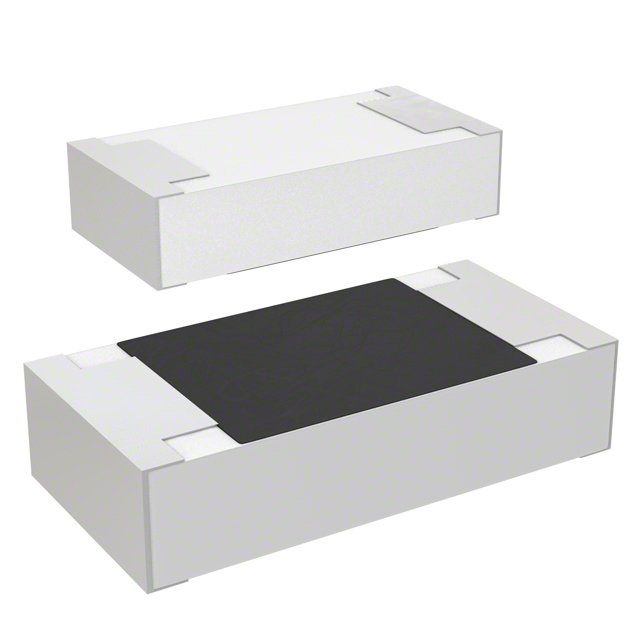

BOURNS CR1206-FX-2202ELF 片式电阻器, 表面贴装, 厚膜, CR系列, 22 kohm, 200 V, 1206 [3216公制], 250 mW, ± 1%
* 底部电极宽度具有严格公差
得捷:
RES SMD 22K OHM 1% 1/4W 1206
贸泽:
厚膜电阻器 - SMD 22K 1%
e络盟:
SMD片式电阻, 1206 [3216公制], 22 kohm, CR Series, 200 V, 厚膜, 250 mW
艾睿:
This is a CR1206-FX-2202ELF fixed single surface-mount resistor from Bourns. This durable part has a power rating of 0.25 1/4 W. This product has a resistance value of 22K Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This part has an operating temperature of -55 to 155 °C. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This device utilizes thick film technology. It has a tolerance of 1%.
安富利:
Res Thick Film 1206 22K Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Paper Tape on Plastic Reel
Verical:
Res Thick Film 1206 22K Ohm 1% 0.25W1/4W ±100ppm/C Pad SMD T/R
Newark:
# BOURNS CR1206-FX-2202ELF Surface Mount Thick Film Resistor, CR Series, 22 kohm, 250 mW, - 1%, 200 V, 1206 [3216 Metric]
MASTER:
Res Thick Film 1206 22K Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD T/R
Electro Sonic:
Res Thick Film 1206 22K Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD T/R
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 CR
电阻 22 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装公制 3216
封装 1206
厚度 610 µm
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CR1206-FX-2202ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CR1206-FX-2202E 伯恩斯 | 完全替代 | CR1206-FX-2202ELF和CR1206-FX-2202E的区别 |
CR1206-JW-223ELF 伯恩斯 | 类似代替 | CR1206-FX-2202ELF和CR1206-JW-223ELF的区别 |
RC1206FR-0722KL 国巨 | 功能相似 | CR1206-FX-2202ELF和RC1206FR-0722KL的区别 |
