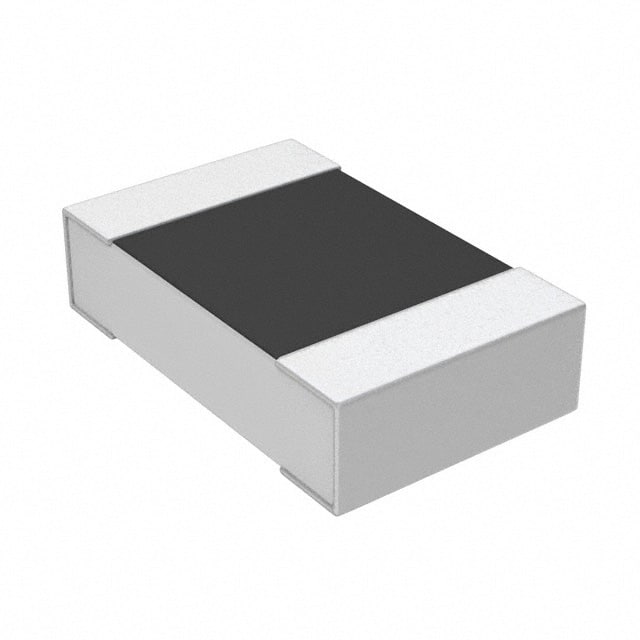

TE CONNECTIVITY / NEOHM CPF0805B27KE1 片式电阻器, 表面贴装, 薄膜, CPF系列, 27 kohm, 200 V, 0805 [2012公制], 100 mW, ± 0.1%
The CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.
- .
- EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
- .
- Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
- .
- ±0.1%, ±0.5% and ±1% tolerance
- .
- Electroplated 100% matte Sn finish
- .
- Operating temperature range -55°C to 125°C
额定电压DC 200 V
额定功率 100 mW
产品系列 CPF
电阻 27 kΩ
阻值偏差 ±0.1 %
额定电压 200 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.55 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 便携式器材, Consumer Electronics, Power Management, 电源管理, 消费电子产品, 工业, Industrial, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CPF0805B27KE1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-1614911-0 泰科 | 类似代替 | CPF0805B27KE1和1-1614911-0的区别 |
RR1220P-273-B-T5 Susumu | 功能相似 | CPF0805B27KE1和RR1220P-273-B-T5的区别 |
PCF0805-13-27K-B-T1 TT Electronics/Welwyn | 功能相似 | CPF0805B27KE1和PCF0805-13-27K-B-T1的区别 |
