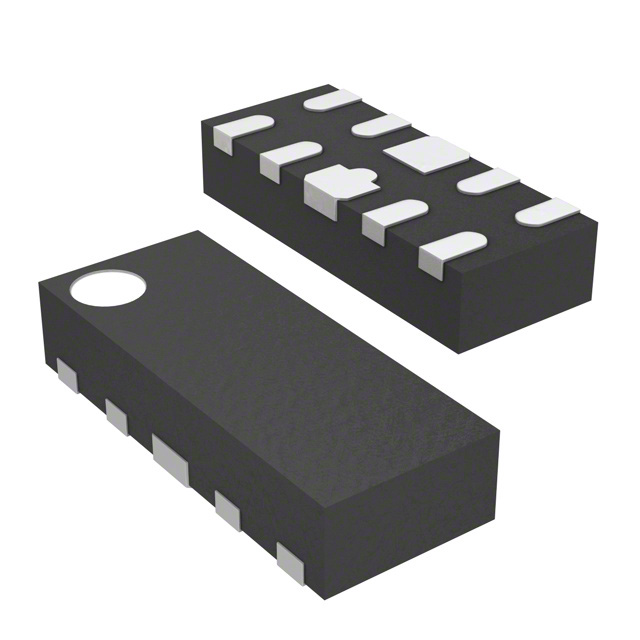

BOURNS CDDFN10-3324P 静电保护装置, AEC-Q101, 7.5 V, DFN, 10 引脚, 3.3 V, 30 W
The is a surface-mount TVS Diode Array provides ESD, CDE and EFT protection for high-speed data ports, meeting IEC 61000-4-2 ESD requirements. The device protecting up to four data lines, offers a working peak reverse voltage of 3.3V and a minimum breakdown voltage of 4.5V. It has an ultra-low typical capacitance of only 0.04pF between I/O lines. This allows it to be used for protecting sensitive components used on high-speed interfaces. The small footprint of the device allows for flow-through routing on the PCB, helping to maintain matched impedances of the high-speed data lines.
- .
- 0.04pF Low capacitance I/O to I/O
- .
- ESD protection to IEC 61000-4-2 level 4
- .
- -55 to 85°C Operating temperature range
工作电压 3.3 V
电容 0.65 pF
击穿电压 4.5 V
针脚数 10
耗散功率 30 W
钳位电压 7.5 V
脉冲峰值功率 30 W
最小反向击穿电压 4.5 V
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 10
封装 DFN-10
高度 0.5 mm
封装 DFN-10
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 消费电子产品, 工业, 计算机和计算机周边, HDMI, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
香港进出口证 NLR
