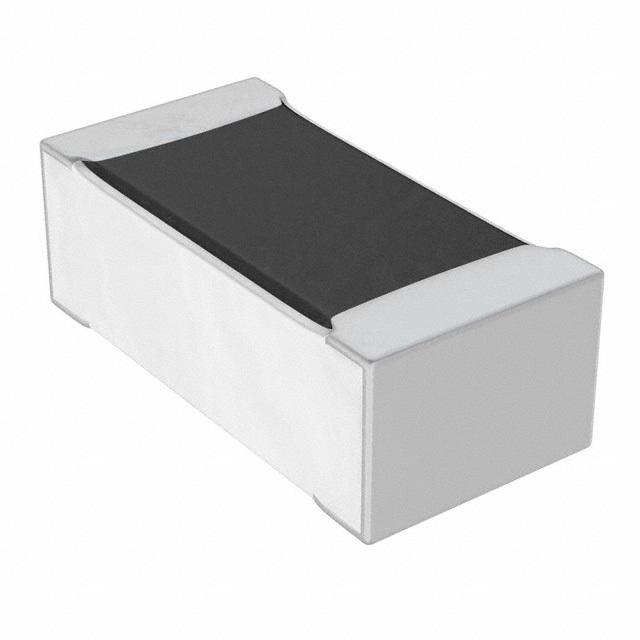

TE CONNECTIVITY / NEOHM CPF0402B820RE1 片式电阻器, 表面贴装, 薄膜, CPF系列, 820 ohm, 50 V, 0402 [1005公制], 63 mW, ± 0.1%
The CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.
- .
- EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
- .
- Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
- .
- ±0.1%, ±0.5% and ±1% tolerance
- .
- Electroplated 100% matte Sn finish
- .
- Operating temperature range -55°C to 125°C
额定电压DC 50.0 V
容差 ±0.1 %
额定功率 0.063 W
产品系列 CPF
电阻 820 Ω
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005

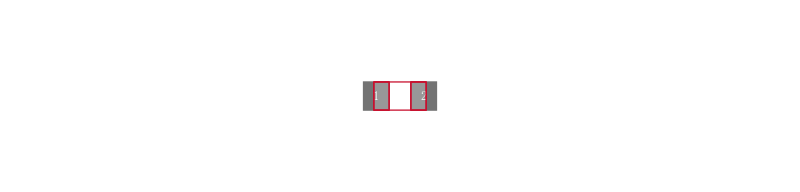

封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.3 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 消费电子产品, 工业, Industrial, Power Management, Portable Devices, Consumer Electronics, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CPF0402B820RE1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
ERA-2AEB821X 松下 | 功能相似 | CPF0402B820RE1和ERA-2AEB821X的区别 |
ERA2AEB821X 松下 | 功能相似 | CPF0402B820RE1和ERA2AEB821X的区别 |
