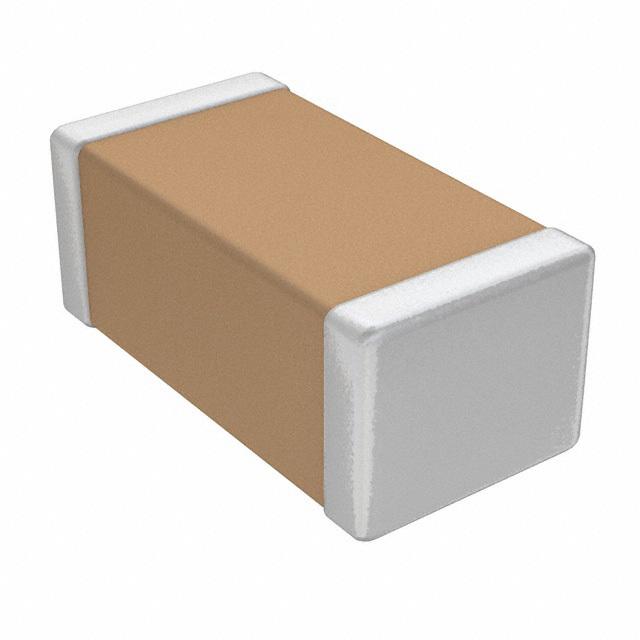

1206 15nF ±10% 630V X7R
0.015 µF ±10% 630V 陶瓷器 X7R 1206（3216 公制）
得捷:
CAP CER 0.015UF 630V X7R 1206
立创商城:
15nF ±10% 630V
艾睿:
Use TDK&s;s C3216X7R2J153K130AM multilayer ceramic capacitor for various purposes in multiple applications. It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 3.2 mm long, 1.3 mm tall and 1.6 mm deep. Its capacitance value is 0.015uF. It has a tolerance of 10%.
Verical:
Cap Ceramic 0.015uF 630V X7R 10% Pad SMD 1206 125C T/R
额定电压DC 630 V
电容 15000 PF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.3 mm
封装公制 3216
封装 1206
厚度 1.15 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Commercial Grade, 通用, Boardflex 敏感
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C3216X7R2J153K130AM TDK 东电化 | 当前型号 | 当前型号 |
C3216X7R2J153K130AA 东电化 | 类似代替 | C3216X7R2J153K130AM和C3216X7R2J153K130AA的区别 |
C3216X7R2E153K115AM 东电化 | 功能相似 | C3216X7R2J153K130AM和C3216X7R2E153K115AM的区别 |
