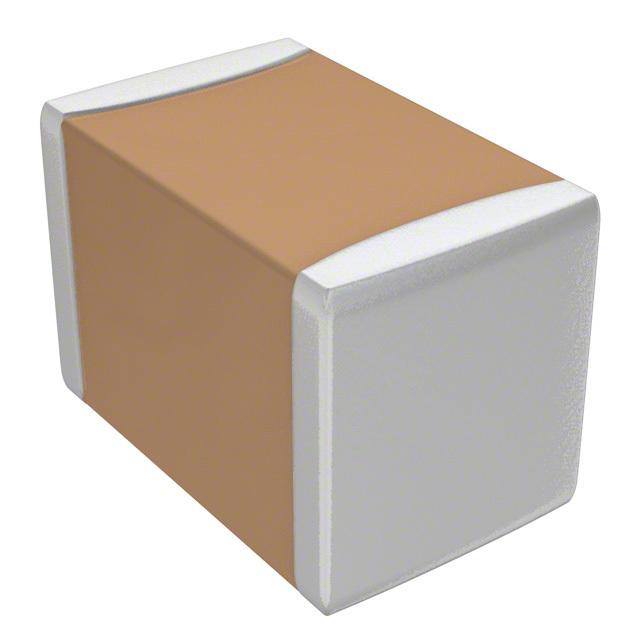

0805 22nF ±10% 50V C0G
0.022µF ±10% 50V Ceramic Capacitor C0G, NP0 0805 2012 Metric
得捷:
CAP CER 0.022UF 50V C0G 0805
立创商城:
22nF ±10% 50V
艾睿:
Do you need a capacitor with high stability and low losses? Then this C2012C0G1H223K125AA multilayer ceramic capacitor from TDK is the solution you are looking for! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep. It has a tolerance of 10%. Its capacitance value is 0.022uF.
Verical:
Cap Ceramic 0.022uF 50V C0G 10% Pad SMD 0805 125C Low ESR T/R
额定电压DC 50.0 V
电容 22000 PF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.00 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
厚度 1.25 mm
材质 C0G/-55℃~+125℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Commercial Grade, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C2012C0G1H223K125AA TDK 东电化 | 当前型号 | 当前型号 |
C2012NP01H223J125AA 东电化 | 功能相似 | C2012C0G1H223K125AA和C2012NP01H223J125AA的区别 |
