1206 68nF ±10% 250V X7R
0.068µF ±10% 250V Ceramic Capacitor X7R 1206 3216 Metric
得捷:
CAP CER 0.068UF 250V X7R 1206
立创商城:
68nF ±10% 250V
艾睿:
Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this C3216X7R2E683K160AA multilayer ceramic capacitor from TDK! It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 0.068uF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 10%.
安富利:
CAP .068UF 250VDC X7R 10% SMD 1206
Verical:
Cap Ceramic 0.068uF 250V X7R 10% Pad SMD 1206 125C T/R
额定电压DC 250 V
电容 68000 PF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Surface Mount
引脚数 2

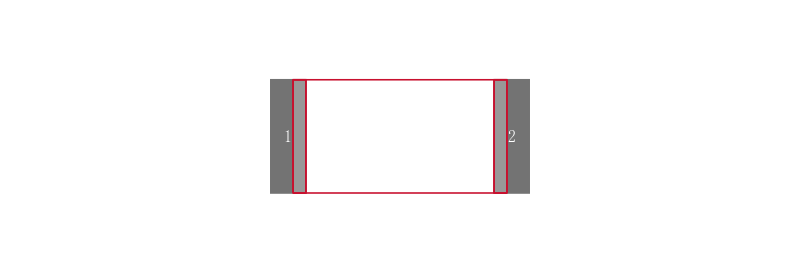

封装公制 3216
封装 1206

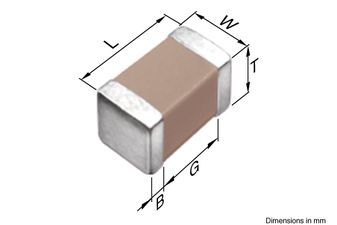

长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
厚度 1.6 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 2000
制造应用 Commercial Grade, 通用, Please refer to Part No., for Automotive use.
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C3216X7R2E683K160AA TDK 东电化 | 当前型号 | 当前型号 |
CGA5L3X7R2E683K160AA 东电化 | 完全替代 | C3216X7R2E683K160AA和CGA5L3X7R2E683K160AA的区别 |
C3216X7R2A683K160AA 东电化 | 类似代替 | C3216X7R2E683K160AA和C3216X7R2A683K160AA的区别 |
C3216X7R2E683K160AM 东电化 | 类似代替 | C3216X7R2E683K160AA和C3216X7R2E683K160AM的区别 |
