CDLL753A

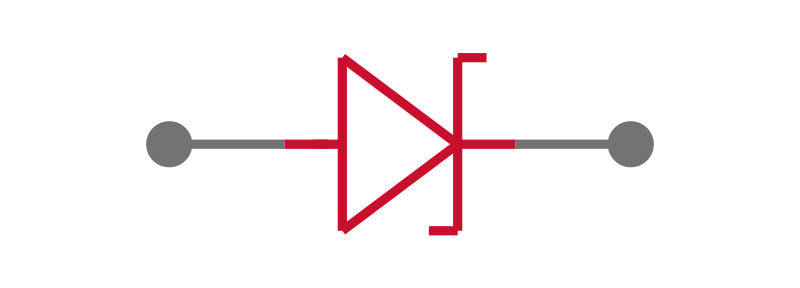

Diode Zener Single 6.2V 5% 0.5W1/2W 2Pin DO-213AA

• 1N746AUR-1 THRU 1N759AUR-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/127

• 1N4370AUR-1 THRU 1N4372AUR-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/127

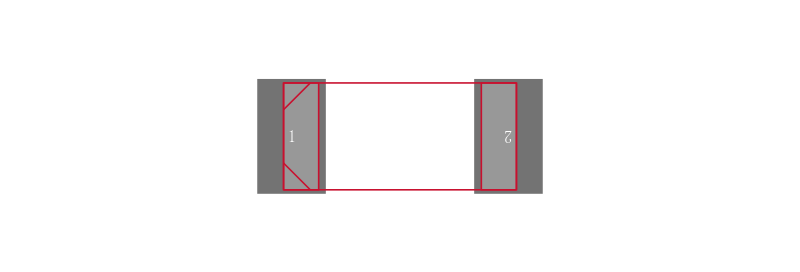

• LEADLESS PACKAGE FOR SURFACE MOUNT

• METALLURGICALLY BONDED

艾睿:
When your circuit requires a diode to act in the reverse-breakdown region use a voltage regulator CDLL753A zener diode from Microsemi. This device has a maximum regulator current of 65 mA. Its test current is 20 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 5 μA. It is made in a single configuration. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 175 °C.

Chip1Stop:
Diode Zener Single 6.2V 5% 500mW 2-Pin DO-213AA

Verical:
Zener Diode Single 6.2V 5% 7Ohm 500mW 2-Pin DO-213AA Bag
