CLF7045T-150M-D

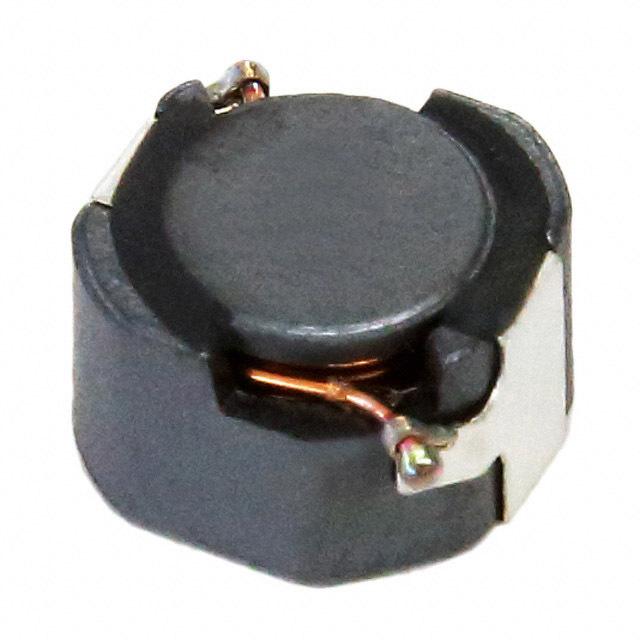

TDK  CLF7045T-150M-D  表面贴装功率电感器, CLF系列, 15 µH, ± 20%, 屏蔽, 0.051 ohm, 2.1 A

SMD 功率器 - CLF7045 D 系列

CLF7045 系列为磁性屏蔽线绕电感器，用于电源电路

CLF 系列提供极好的 EMC 处理性能

微型坚固设计实现了在汽车设备（ECM、HID、SRS 气袋、传输控制、助力转向控制和制动控制）和高温操作设备中的一般使用。 它们具有耐热和抗振动机械冲击性，可提供承受汽车使用的能力

得捷:
FIXED IND 15UH 2.1A 61.2MOHM SMD

欧时:
TDK CLF 系列 屏蔽 铁氧体芯材 15 μH 绕线贴片电感器 CLF7045T-150M-D, ±20%容差, 2.3A Idc

e络盟:
功率电感SMD, 15 µH, 2.1 A, 屏蔽, 2.3 A, CLF系列, 7.2mm x 6.9mm x 4.5mm

艾睿:

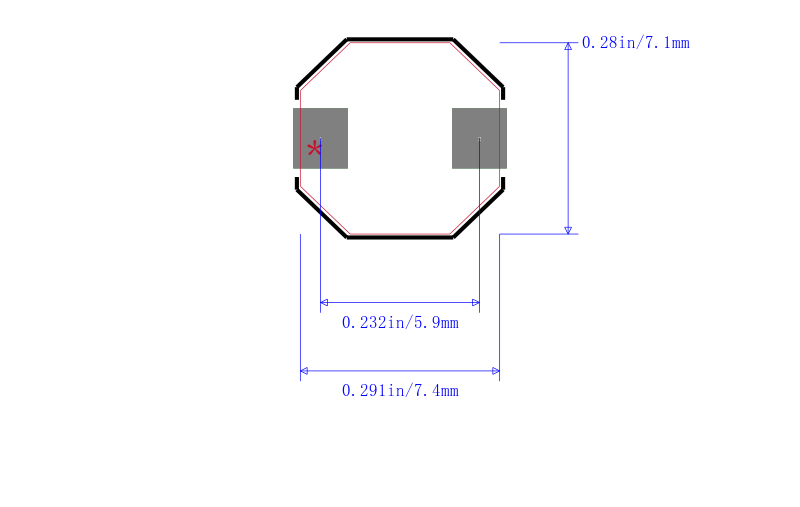

Make any circuit look clean and compact using this power CLF7045T-150M-D surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 7.4 mm long, 4.8 mm tall and 7.1 mm deep. This device is made with wirewound technology. It has an inductance of 15u H. This SMD inductor has a maximum DC current of 2.1Typ A with a maximum resistance of 61.2m Ohm. Its test frequency is 100K Hz. It has a tolerance of 20%.

安富利:
CLF7045T-150M-D

Chip1Stop:
Ind Power Shielded Wirewound 15uH 20% 100KHz Ferrite 2.1A T/R

Verical:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 2.1A 0.0612Ohm DCR Automotive T/R
