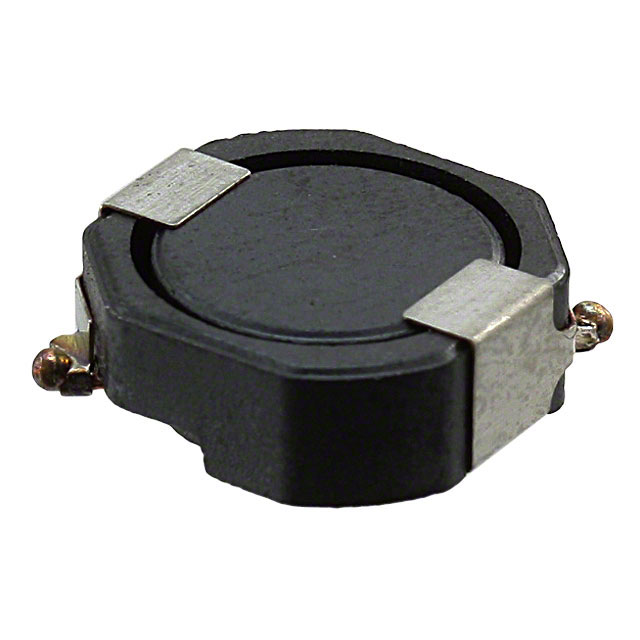

TDK CLF10040T-2R2N 表面贴装功率电感器, CLF系列, 2.2 µH, ± 30%, 绕线, 0.097 ohm, 5 A
固定器
得捷:
FIXED IND 2.2UH 5A 12.61MOHM SMD
欧时:
TDK CLF 系列 屏蔽 铁氧体芯材 2.2 μH 绕线贴片电感器 CLF10040T-2R2NT, ±30%容差, 10.6A Idc
e络盟:
TDK CLF10040T-2R2N 表面贴装功率电感器, CLF系列, 2.2 µH, ± 30%, 绕线, 0.097 ohm, 5 A
艾睿:
Use this power CLF10040T-2R2N surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 5Typ A with a maximum resistance of 12.61m Ohm. This device utilizes wirewound technology. It has an inductance of 2.2u H. Its test frequency is 100K Hz. This product is 10.3 mm long, 4.1 mm tall and 10 mm deep.
安富利:
Ind Power Shielded Wirewound 2.2uH 30% 100KHz 5A T/R
Chip1Stop:
Ind Power Shielded Wirewound 2.2uH 30% 100KHz 5A T/R
Verical:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 5A 0.01261Ohm DCR T/R
额定电流 5 A
容差 ±30 %
电感 2.2 µH
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤12.61 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.097 Ω
安装方式 Surface Mount
封装 10mm x 9.7mm x 3.8mm
长度 10 mm
宽度 10 mm
高度 4.1 mm
封装 10mm x 9.7mm x 3.8mm
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CLF10040T-2R2N TDK 东电化 | 当前型号 | 当前型号 |
LQH88PN2R2N38L 村田 | 功能相似 | CLF10040T-2R2N和LQH88PN2R2N38L的区别 |
