EXAR CLC1001IST6MTR 运算放大器, 单路, 2.1 GHz, 1个放大器, 410 V/µs, 4V 至 12V, SOT-23, 6 引脚
The is a high-performance single Voltage Feedback Operational Amplifier feature ultra-low input voltage noise. The CLC1001 provides 2.1GHz gain bandwidth product and 410V/µs slew rate making it well suited for high-speed data acquisition systems requiring high levels of sensitivity and signal integrity. This COMLINEAR high-performance amplifier also offers low input offset voltage. The COMLINEAR CLC1001 is designed to operate from 4 to 12V supplies. It consumes only 12.5mA of supply current per channel and offers a power saving disable pin that disables the amplifier and decreases the supply current to below 225µA.
- .
- 0.6nV/√Hz Input voltage noise
- .
- 1mV Maximum input offset voltage
- .
- Minimum stable gain of 10
- .
- 130mA Output current
输出电流 130mA @5V
供电电流 12.5 mA
电路数 1
针脚数 6
带宽 2.1 GHz
转换速率 410 V/μs
增益频宽积 2100 MHz
输入偏置电流 28μA @5V
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 284 MHz
共模抑制比Min 85dB ~ 90dB
电源电压 4V ~ 12V
电源电压Max 12V ~ 12.5V
安装方式 Surface Mount
引脚数 6

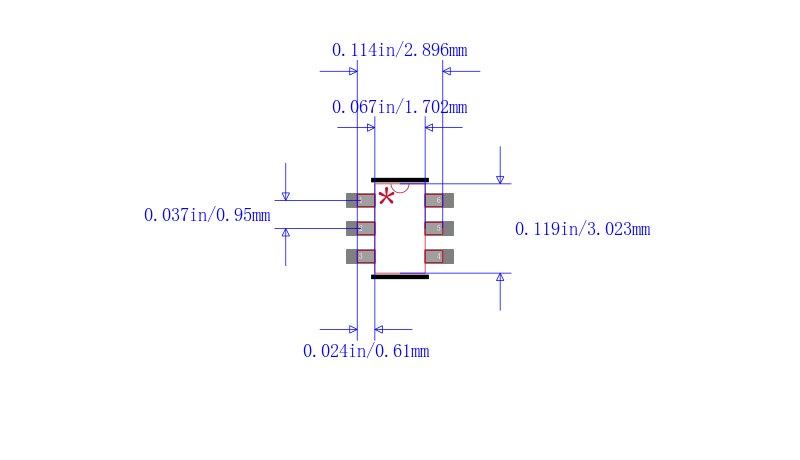

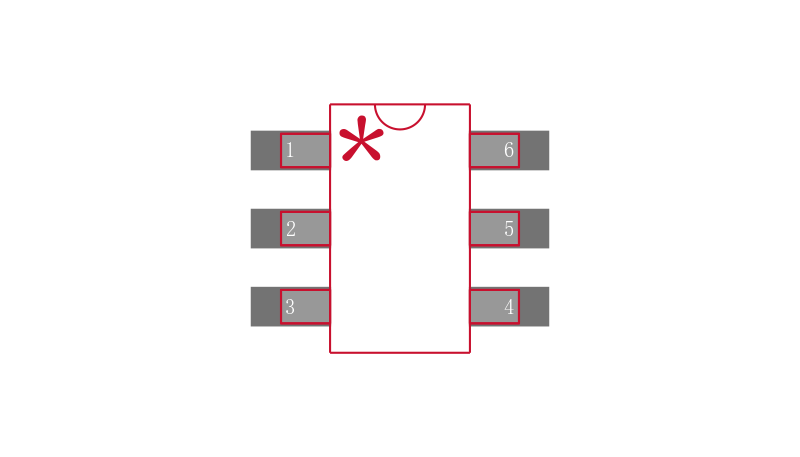

封装 SOT-23-6
高度 0.9 mm
封装 SOT-23-6
工作温度 -40℃ ~ 125℃
产品生命周期 Last Time Buy
包装方式 Cut Tape CT
制造应用 Test & Measurement, Signal Processing, Medical, 信号处理, 医用, 测试与测量, Signal Processing, Medical, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CLC1001IST6MTR Exar Corporation 艾科嘉 | 当前型号 | 当前型号 |
CLC1001IST6X 艾科嘉 | 完全替代 | CLC1001IST6MTR和CLC1001IST6X的区别 |
