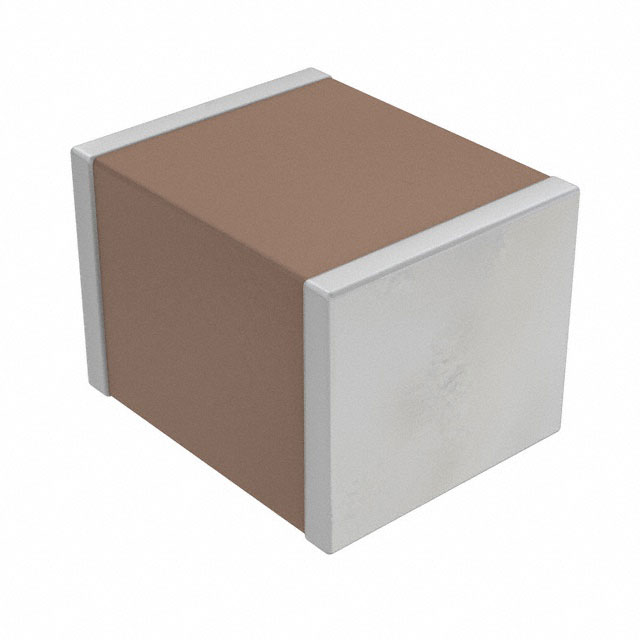

TDK CGA6M4X7R2J473M200AE 多层陶瓷电容器, 表面贴装, CGA系列, 0.047 µF, ± 20%, X7R, 630 V, 1210 [3225 公制]
0.047 µF ±20% 630V 陶瓷器 X7R 1210(3225 公制)
得捷:
CAP CER 0.047UF 630V X7R 1210
立创商城:
47nF ±20% 630V
e络盟:
TDK CGA6M4X7R2J473M200AE 多层陶瓷电容器, 表面贴装, CGA系列, 0.047 µF, ± 20%, X7R, 630 V, 1210 [3225 公制]
艾睿:
This CGA6M4X7R2J473M200AE multilayer ceramic capacitor from TDK offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 0.047uF. This device utilizes flexiterm technology. This product is 3.2 mm long, 2 mm tall and 2.5 mm deep. It has a tolerance of 20%.
Chip1Stop:
Cap Ceramic 0.047uF 630V X7R 20% SMD 1210 FlexiTerm 125℃ Automotive T/R
Verical:
Cap Ceramic 0.047uF 630V X7R 20% Pad SMD 1210 Soft Termination 125C Automotive T/R
Newark:
# TDK CGA6M4X7R2J473M200AE Multilayer Ceramic Capacitor, CGA Series, 0.047 - F, - 20%, X7R, 630 V, 1210 [3225 Metric]
额定电压DC 630 V
电容 47000 pF
容差 ±20 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 3225
封装 1210

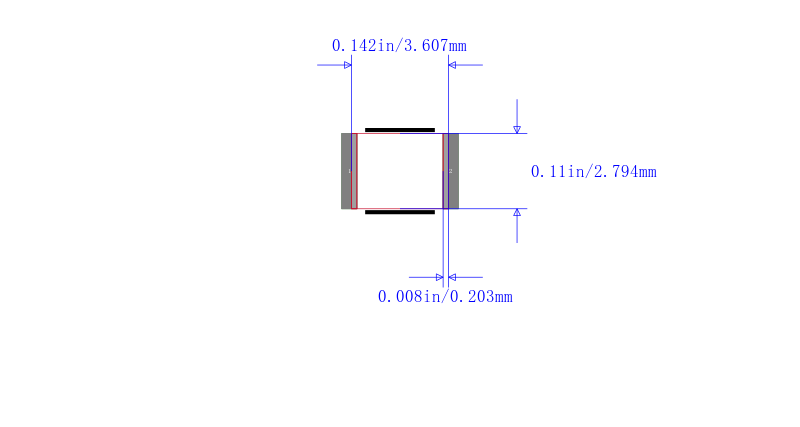

长度 3.2 mm
宽度 2.5 mm
高度 2 mm
封装公制 3225
封装 1210
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 2000
制造应用 汽车级,Boardflex 敏感, Automotive Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CGA6M4X7R2J473M200AE TDK 东电化 | 当前型号 | 当前型号 |
CGA6M4X7R2J473M200AA 东电化 | 类似代替 | CGA6M4X7R2J473M200AE和CGA6M4X7R2J473M200AA的区别 |
