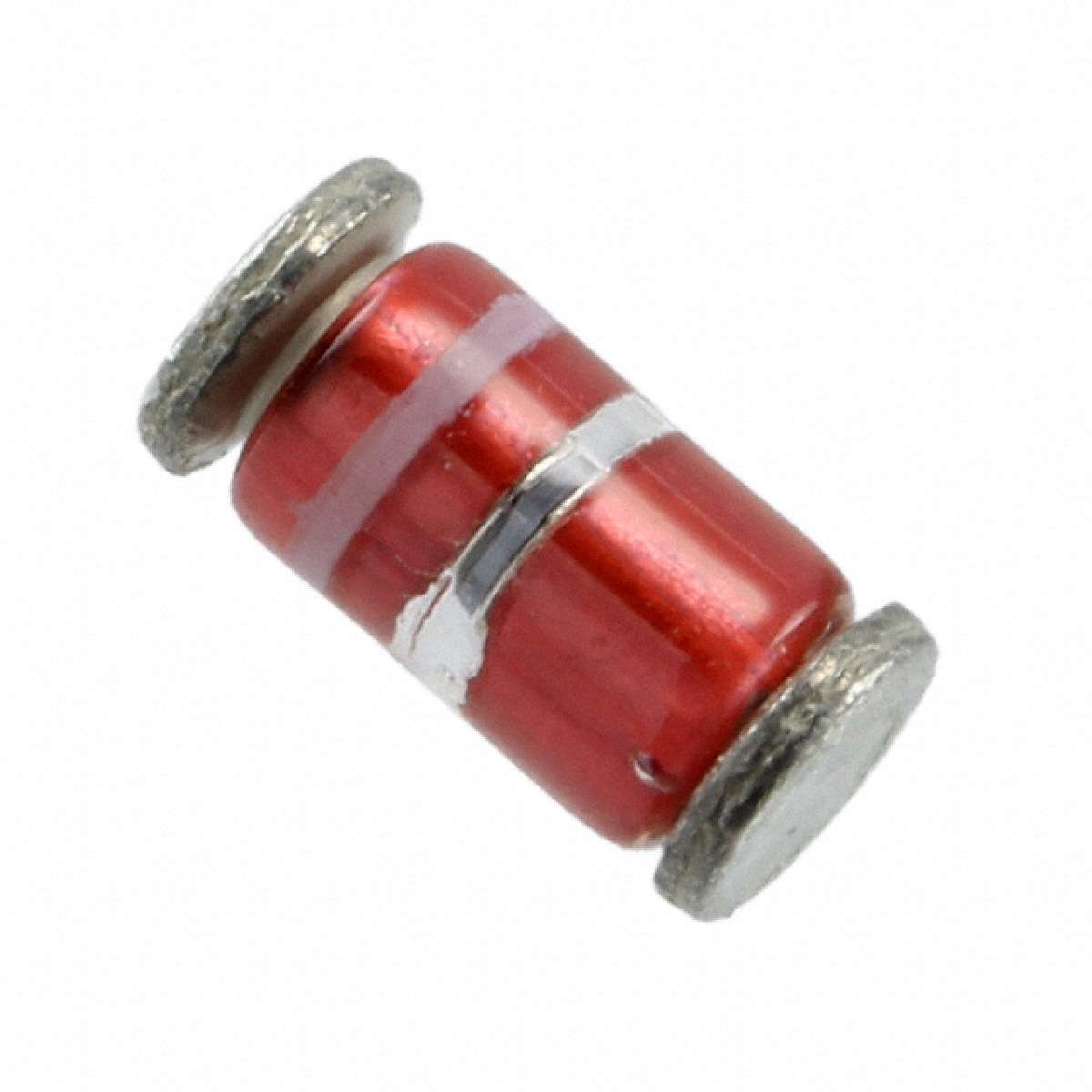

CDLL4614

无铅封装用于表面安装 LEADLESS PACKAGE FOR SURFACE MOUNT

• 1N4614UR-1 THRU 1N4627UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435

• LEADLESS PACKAGE FOR SURFACE MOUNT

• LOW CURRENT OPERATION AT 250 µA

• METALLURGICALLY BONDED

艾睿:
Access the reverse breakdown region using a voltage regulator CDLL4614 zener diode from Microsemi. This device has a maximum regulator current of 120 mA. Its maximum power dissipation is 500 mW. Its test current is 0.25 mA. Its maximum leakage current is 7.5 μA. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. This zener device has a nominal voltage of 1.8 V and a voltage tolerance of 5%. It is made in a single configuration.

Chip1Stop:
Diode Zener Single 1.8V 5% 500mW 2-Pin DO-213AA

Verical:
Zener Diode Single 1.8V 5% 1200Ohm 500mW 2-Pin DO-213AA Bag
