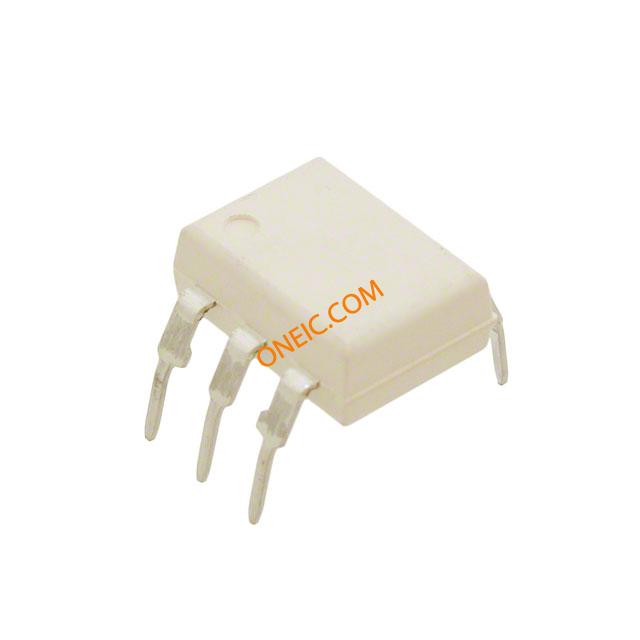

CNY17F1300W

Optocoupler DC-IN 1CH Transistor DC-OUT 6Pin PDIP Black Bulk

**6-PIN DIP OPTOCOUPLERS FOR ****POWER SUPPLY APPLICATIONS****NO BASE CONNECTION**

**FEATURES**

The MOC810X and CNY17F-X devices consist of a gallium arsenide LED optically coupled to a silicon phototransistor in a dual-in ine package.

• Closely Matched Current Transfer Ratio CTR Minimizes Unit-to-Unit Variation

• Narrow CTR Windows that Translate to a Narrow and Predictable Open Loop Gain Window

• Very Low Coupled Capacitance along with No Chip to Pin 6 Base Connection for Minimum Noise Susceptibility

**_• To order devices that are tested and marked per VDE 0884 requirements, the suffix “.300” must be included at the end _****_of part number. e.g. MOC8101.300 VDE 0884 is a test option._**

**APPLICATIONS**

• Switchmode Power Supplies Feedback Control

• AC Line/Digital Logic Isolation

• Interfacing and coupling systems of different potentials and impedances
