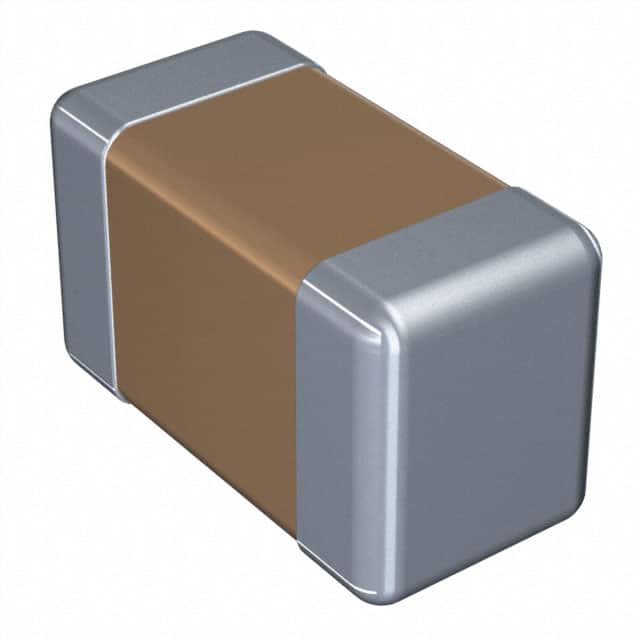

0603 10uF ±10% 6.3V -B
10µF ±10% 6.3V Ceramic Capacitor JB 0603 1608 Metric
得捷:
CAP CER 10UF 6.3V JB 0603
艾睿:
This C1608JB0J106K080AB multilayer ceramic capacitor MLCC from TDK consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 10uF. It has a tolerance of 10%.
Verical:
Cap Ceramic 10uF 6.3V JB 10% Pad SMD 0603 85C Low ESR T/R
额定电压DC 6.30 V
电容 10000000 PF
容差 ±10 %
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 6.3 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.60 mm
宽度 800 µm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 -B/-25℃~+85℃
介质材料 Ceramic Multilayer
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Commercial Grade, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C1608JB0J106K080AB TDK 东电化 | 当前型号 | 当前型号 |
C1608JB0J106M080AB 东电化 | 类似代替 | C1608JB0J106K080AB和C1608JB0J106M080AB的区别 |
C1608JB1A106K080AC 东电化 | 功能相似 | C1608JB0J106K080AB和C1608JB1A106K080AC的区别 |
C1608JB0J106KB 东电化 | 功能相似 | C1608JB0J106K080AB和C1608JB0J106KB的区别 |
