CG2350L

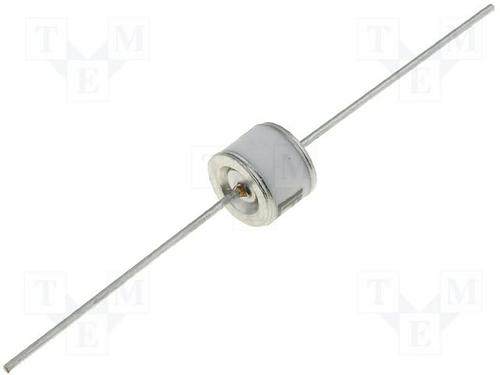

CG2350L图片1
CG2350L图片2
CG2350L图片3
CG2350L图片4
CG2350L图片5
CG2350L图片6
CG2350L概述

LITTELFUSE  CG2350L  气体放电管 GDT, Low Capacitance, CG2系列, 350 V, 2终端通孔, 20 kA, 900 V

The CG2-350L is a Gas Discharge Tube provides a high degree of surge protection in a small size ideal for board level circuit protection. The GDT functions as switches which dissipate a minimum amount of energy and therefore handle currents that far surpass other types of transient voltage protection. It is gas-filled, rugged ceramic metal construction makes it well suited to adverse environments. It comes in a variety of forms including surface mount, core, straight and shaped leads, to serve a variety of mounting methods. It is ideal for protecting equipment where higher voltage limits and holdover voltages are necessary.

.
Rugged ceramic-metal construction
.
<1.5pf Low capacitance
.
-40 to +90°C Operating temperature range
CG2350L中文资料参数规格
技术参数

绝缘电阻 10 GΩ

电容 1.5 pF

工作温度Max 90 ℃

工作温度Min -40 ℃

封装参数

安装方式 Through Hole

封装 2终端通孔

外形尺寸

长度 6.07 mm

宽度 8.1 mm

高度 8.1 mm

直径 8.10 mm

封装 2终端通孔

其他

产品生命周期 Active

包装方式 Tray

制造应用 工业, 测试与测量, 医用, Medical, Industrial, Communications & Networking, 电源管理, Power Management, 通信与网络, Test & Measurement

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

海关信息

ECCN代码 EAR99

数据手册

在线购买CG2350L
型号: CG2350L
描述:LITTELFUSE  CG2350L  气体放电管 GDT, Low Capacitance, CG2系列, 350 V, 2终端通孔, 20 kA, 900 V
替代型号CG2350L
型号/品牌 代替类型 替代型号对比

CG2350L

Littelfuse 力特

当前型号

当前型号

CG2-350L

力特

功能相似

CG2350L和CG2-350L的区别
