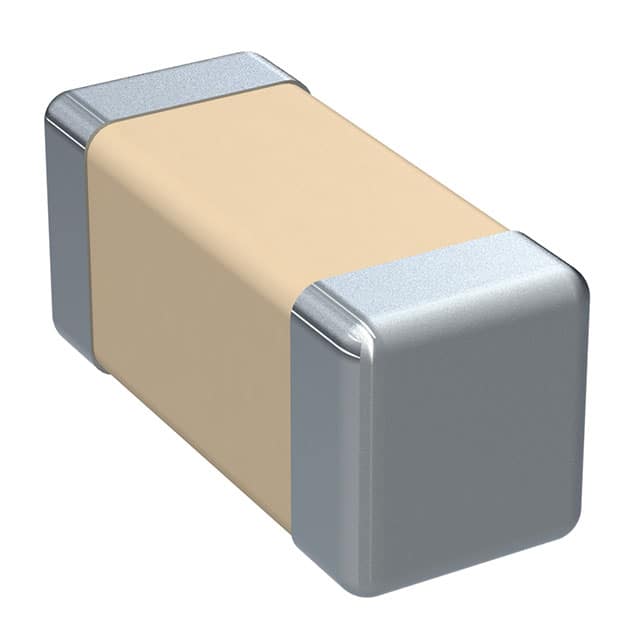

Cap Ceramic 36pF 50V C0G 5% SMD 0603 125
SMD Comm C0G SnPb, Ceramic, Commercial Grade, 36 pF, 5%, 50 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0603
立创商城:
36pF ±5% 50V
得捷:
CAP CER 36PF 50V NP0 0603
艾睿:
This C0603C360J5GALTU multilayer ceramic capacitor from Kemet uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 36pF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. It has a tolerance of 5%.
Verical:
Cap Ceramic 36pF 50V C0G 5% Pad SMD 0603 125C Extreme Low ESR T/R
额定电压DC 50.0 V
绝缘电阻 100 GΩ
电容 36 PF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
引脚间距 0.7 mm
长度 1.6 mm
宽度 1.6 mm
高度 0.8 mm
封装公制 1608
封装 0603
引脚间距 0.7 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Lead Free
