低电容 ESD 保护阵列### 瞬态电压抑制器,On Semiconductor
低电容 ESD 保护阵列
### 瞬态电压抑制器,On Semiconductor
得捷:
TVS DIODE 3.3VWM 8.8VC 8-MSOP
欧时:

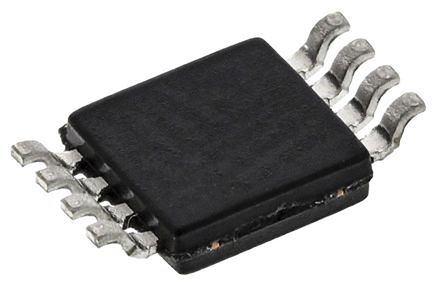

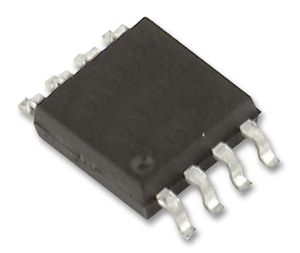

ESD 保护阵列 ON Semiconductor CM1213-06MR 双向, 0.4W, 8.8V, 8针 MSOP封装
立创商城:
CM1213-06MR
e络盟:
静电保护装置, 6通道, 8.8 V, MSOP, 8 引脚, 3.3 V, CM1213 Series
艾睿:
This diode array CM1213-06MR ESD protection device from ON Semiconductor, will prevent from a costly fix if your system is to be hit with electrostatic discharge. This ESD diode has a maximum ESD protection device voltage of ±8@Contact Disc kV. This device&s;s maximum clamping voltage is 8.8Typ V. This ESD diode has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a hex configuration. Its capacitance value is 1.5 pF.
Allied Electronics:
CM1213-06MR, Hex Uni-Directional ESD Protection Array, 400mW, 8-Pin MSOP
安富利:
ESD Suppressor Diode Arrays ±8KV 8-Pin MSOP T/R
富昌:
ESD Suppressor Diode Arrays 5.5V 8-Pin Micro T/R
Chip1Stop:
ESD Suppressor Diode Arrays ±8kV 8-Pin Micro T/R
Verical:
ESD Suppressor Diode Diode Array Uni-Dir 5.5V 8-Pin Micro T/R
工作电压 3.3 V
电容 1.5 pF
无卤素状态 Halogen Free
针脚数 8
耗散功率 0.4 W
钳位电压 8.8 V
脉冲峰值功率 0.4 W
最小反向击穿电压 6 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 400 mW
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
长度 3.1 mm
宽度 3.1 mm
高度 0.95 mm
封装 MSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用, General purpose high-speed data line ESD protection, USB2.0, DVI, SATA
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
