高速CMOS逻辑双路可重触发单稳态触发器与复位 High-Speed CMOS Logic Dual Retriggerable Monostable Multivibrators with Resets
Description
The ’HC123, ’HCT123, CD74HC423 and CD74HCT423 are dual monostable multivibrators with resets. They are all retriggerable and differ only in that the 123 types can be triggered by a negative to positive reset pulse; whereas the 423 types do not have this feature. An external resistor RX and an external capacitor CX control the timing and the accuracy for the circuit.
得捷:
IC MULTIVIBRATOR 25NS 16DIP
立创商城:
CD74HCT423E
德州仪器TI:
High Speed CMOS Logic Dual Retriggerable Monostable Multivibrators with Reset
艾睿:
Thanks to Texas Instruments and their CD74HCT423E monostable multivibrator, you can ensure that you never miss important details thanks to its quick, notifying pulse. This monostable multivibrator has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Monostable Multivibrator Dual 16-Pin PDIP Tube
Chip1Stop:
Monostable Multivibrator Dual 16-Pin PDIP Tube
Verical:
Monostable Multivibrator Dual-Element -55C 125C 16-Pin PDIP Tube
Newark:
# TEXAS INSTRUMENTS CD74HCT423E Monostable Multivibrator, 74HCT423, 25 ns, 4 mA, 4.5 V to 5.5 V, DIP-16
DeviceMart:
IC RETRIG MONO MULTVIBRATR 16DIP
数字逻辑电平 CMOS
电源电压DC 5.00 V, 5.50 V max
输出电流 4 mA
电路数 2
位数 2
电压波节 5.00 V
上升时间 400 ns
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 16

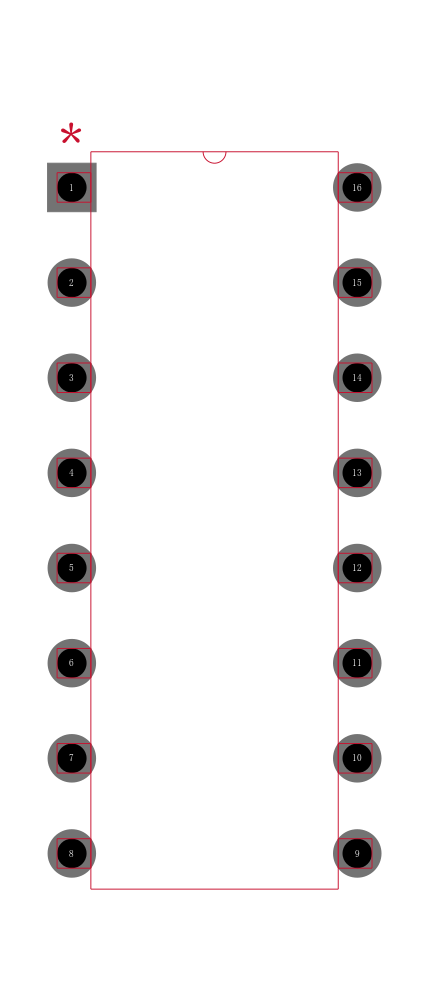

封装 PDIP-16
封装 PDIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74HCT423E TI 德州仪器 | 当前型号 | 当前型号 |
CD74HCT423EE4 德州仪器 | 类似代替 | CD74HCT423E和CD74HCT423EE4的区别 |
