TEXAS INSTRUMENTS CD74HC253MT 逻辑芯片, 多路复用器, 2通道, SOIC-16
Is your microprocessor running out of IO ports? Reduce the number of electrical lines with Texas Instruments" multiplexer, a tool that can easily forward one of many selected lines into a single port! This multiplexer has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a 2 x 4:1 configuration. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
输出接口数 2
触点类型 4PST
电路数 2
通道数 2
针脚数 16
位数 4
带宽 28.0 MHz
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

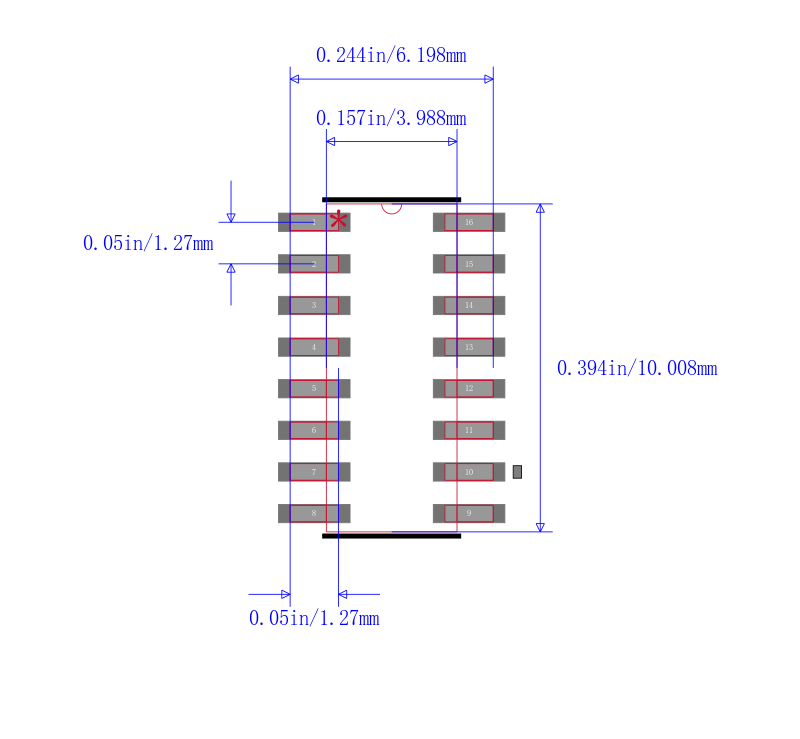

封装 SOIC-16
长度 9.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HC253MT TI 德州仪器 | 当前型号 | 当前型号 |
CD74HC253M 德州仪器 | 完全替代 | CD74HC253MT和CD74HC253M的区别 |
CD74HC253ME4 德州仪器 | 完全替代 | CD74HC253MT和CD74HC253ME4的区别 |
CD74HC253M96 德州仪器 | 完全替代 | CD74HC253MT和CD74HC253M96的区别 |
