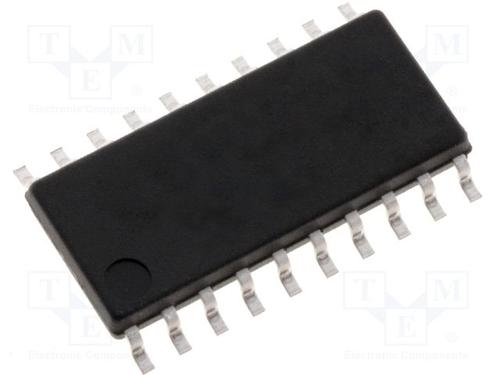

TEXAS INSTRUMENTS CD74HC241M 逻辑芯片, 缓冲器/驱动器, 三态, 八路, 20SOICW
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V ~ 6.00V
输出接口数 8
通道数 2
针脚数 20
位数 8
传送延迟时间 28.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
封装 SOIC-20
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HC241M TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC241DW 德州仪器 | 类似代替 | CD74HC241M和SN74HC241DW的区别 |
SN74HC241DWR 德州仪器 | 类似代替 | CD74HC241M和SN74HC241DWR的区别 |
CD74HC241M96 德州仪器 | 类似代替 | CD74HC241M和CD74HC241M96的区别 |
