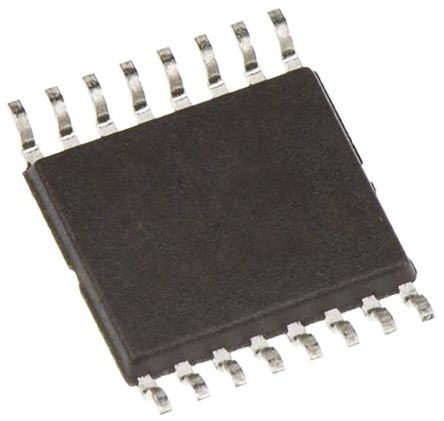

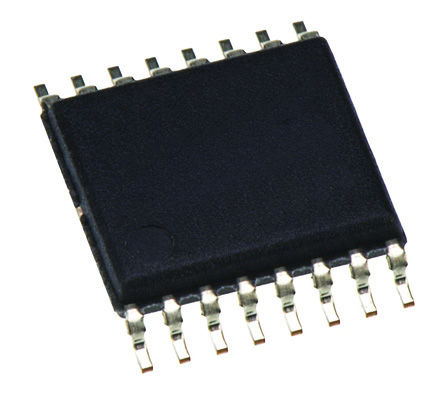

TEXAS INSTRUMENTS CD4028BPW 逻辑芯片, 译码器, CMOS, BCD码-十进制, 16TSSOP
4000 系列编码器/解码器、多路复用器/多路输出选择器,Texas Instruments
Texas Instruments 的 4000 系列 CMOS 逻辑系列的一系列多路复用器、多路信号分离器和模拟开关。
得捷:
IC DECODER CMOS BCD-DEC 16TSSOP
立创商城:
解码器 单电源 3V~18V
德州仪器TI:
CMOS BCD-to-Decimal or Binary-to-Octal Decoders/Drivers
欧时:
### 4000 系列编码器/解码器、多路复用器/多路输出选择器,Texas InstrumentsTexas Instruments 的 4000 系列 CMOS 逻辑系列的一系列多路复用器、多路信号分离器和模拟开关。### 4000 CMOS 逻辑系列,Texas InstrumentsCMOS 系列设备 宽工作电压范围:3 至 18V
贸泽:
Encoders, Decoders, Multiplexers & Demultiplexers CMOS BCD-Dec or Bin- Octal Dec/Drivers
e络盟:
TEXAS INSTRUMENTS CD4028BPW 逻辑芯片, 译码器, CMOS, BCD码-十进制, 16TSSOP
艾睿:
Use this CD4028BPW from Texas Instruments to decode multiplexed or non-binary data. This decoder has an operating temperature range of -55 °C to 125 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
安富利:
Decoder/Demultiplexer Single 4-to-10 16-Pin TSSOP Tube
Chip1Stop:
Decoder/Demultiplexer Single 4-to-10 16-Pin TSSOP Tube
Verical:
Decoder/Demultiplexer Single 4-to-10 16-Pin TSSOP Tube
Newark:
# TEXAS INSTRUMENTS CD4028BPW BCD to Decimal Decoder, 10 Output, 3 V to 18 V, TSSOP-16
DeviceMart:
IC DECODER CMOS BCD-DEC 16TSSOP
电源电压DC 3.00V min
输出接口数 10
电路数 1
针脚数 16
位数 10
电压波节 5.00 V, 10.0 V, 15.0 V
带宽 8.00 MHz
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

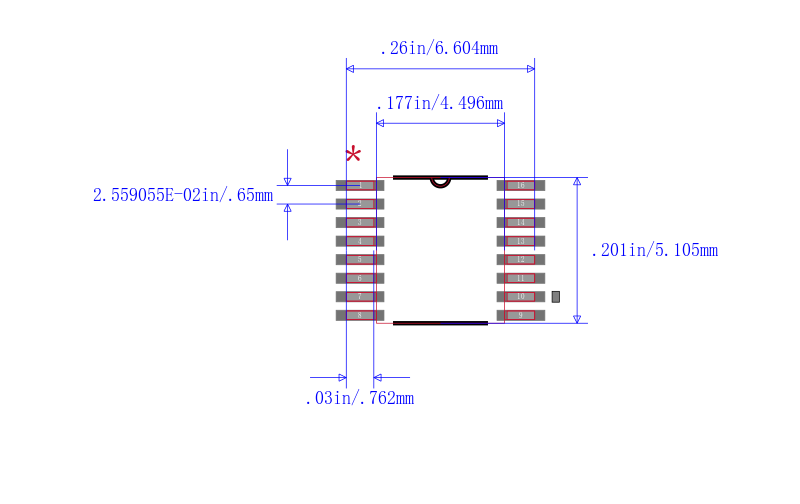

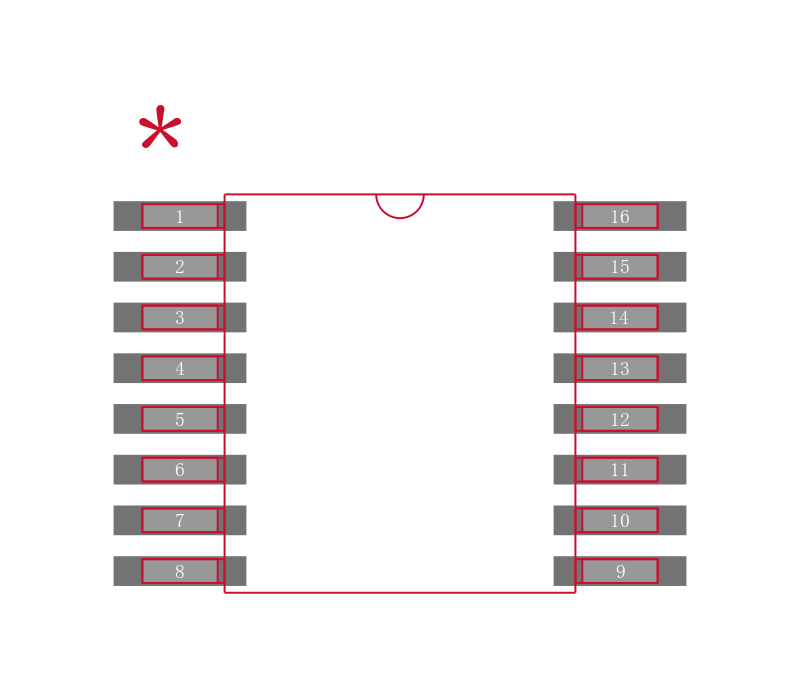

封装 TSSOP-16
长度 5.1 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD4028BPW TI 德州仪器 | 当前型号 | 当前型号 |
CD4028BPWR 德州仪器 | 完全替代 | CD4028BPW和CD4028BPWR的区别 |
CD4028BPWRE4 德州仪器 | 完全替代 | CD4028BPW和CD4028BPWRE4的区别 |
MC14511BDG 安森美 | 功能相似 | CD4028BPW和MC14511BDG的区别 |
