CDLL4626

无铅封装用于表面安装 LEADLESS PACKAGE FOR SURFACE MOUNT

• 1N4614UR-1 THRU 1N4627UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435

• LEADLESS PACKAGE FOR SURFACE MOUNT

• LOW CURRENT OPERATION AT 250 µA

• METALLURGICALLY BONDED

贸泽:

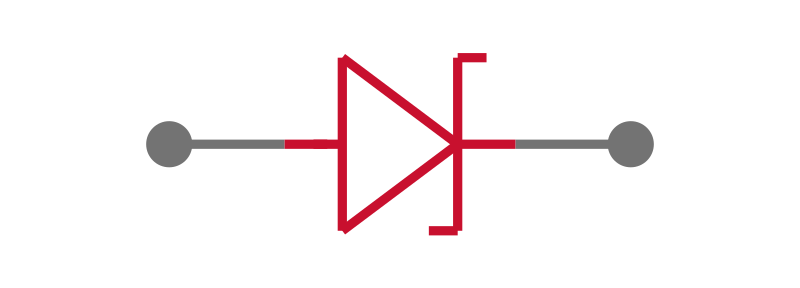

Zener Diodes Zener Voltage Regulator Diode

艾睿:
When your circuit requires a diode to act in the reverse-breakdown region use a voltage regulator CDLL4626 zener diode from Microsemi. Its test current is 0.25 mA. This device has a maximum regulator current of 65 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 10 μA. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 175 °C. This zener device has a nominal voltage of 5.6 V and a voltage tolerance of 5%.

TME:
Diode: Zener; 500mW; 5.6V; 65mA; SMD; DO213AA; Ir:5uA; Urmax:4V

Verical:
Zener Diode Single 5.6V 5% 1400Ohm 500mW 2-Pin DO-213AA Bag
