1206 10nF ±10% 50V C0G
10000pF ±10% 50V Ceramic Capacitor C0G, NP0 1206 3216 Metric
立创商城:
10nF ±10% 50V
得捷:
CAP CER 10000PF 50V C0G 1206
艾睿:

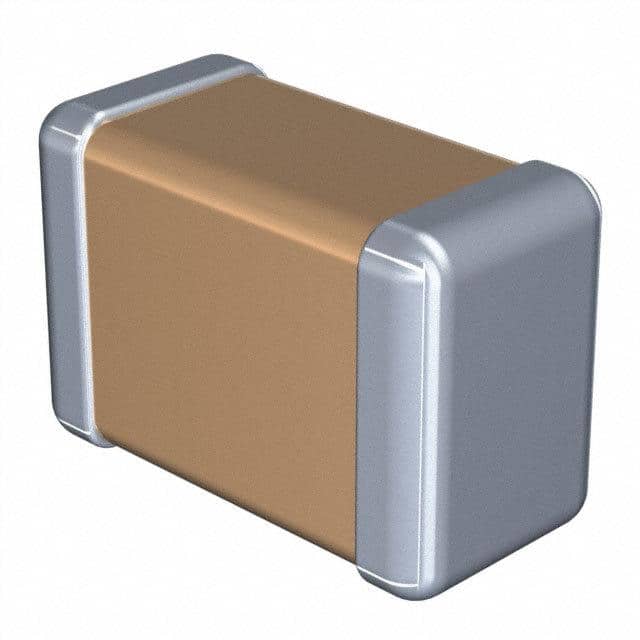

Use TDK&s;s C3216C0G1H103K060AA multilayer ceramic capacitor for various purposes in multiple applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 10%. Its capacitance value is 0.01uF. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep.
Chip1Stop:
Cap Ceramic 0.01uF 50V C0G 10% Pad SMD 1206 125℃ T/R
Verical:
Cap Ceramic 0.01uF 50V C0G 10% Pad SMD 1206 125C Low ESR T/R
额定电压DC 50.0 V
电容 10000 pF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装公制 3216
封装 1206
厚度 600 µm
材质 C0G/-55℃~+125℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用, Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C3216C0G1H103K060AA TDK 东电化 | 当前型号 | 当前型号 |
C3216C0G1H103J060AA 东电化 | 类似代替 | C3216C0G1H103K060AA和C3216C0G1H103J060AA的区别 |
C3216C0G1H103J/10 东电化 | 类似代替 | C3216C0G1H103K060AA和C3216C0G1H103J/10的区别 |
C3216NP01H103J060AA 东电化 | 功能相似 | C3216C0G1H103K060AA和C3216NP01H103J060AA的区别 |
