DO-213AA 13V 0.5W1/2W
• 1N4099UR-1 THRU 1N4135UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435
• LEADLESS PACKAGE FOR SURFACE MOUNT
• LOW CURRENT OPERATION AT 250 µA
• METALLURGICALLY BONDED
• DOUBLE PLUG CONSTRUCTION
艾睿:

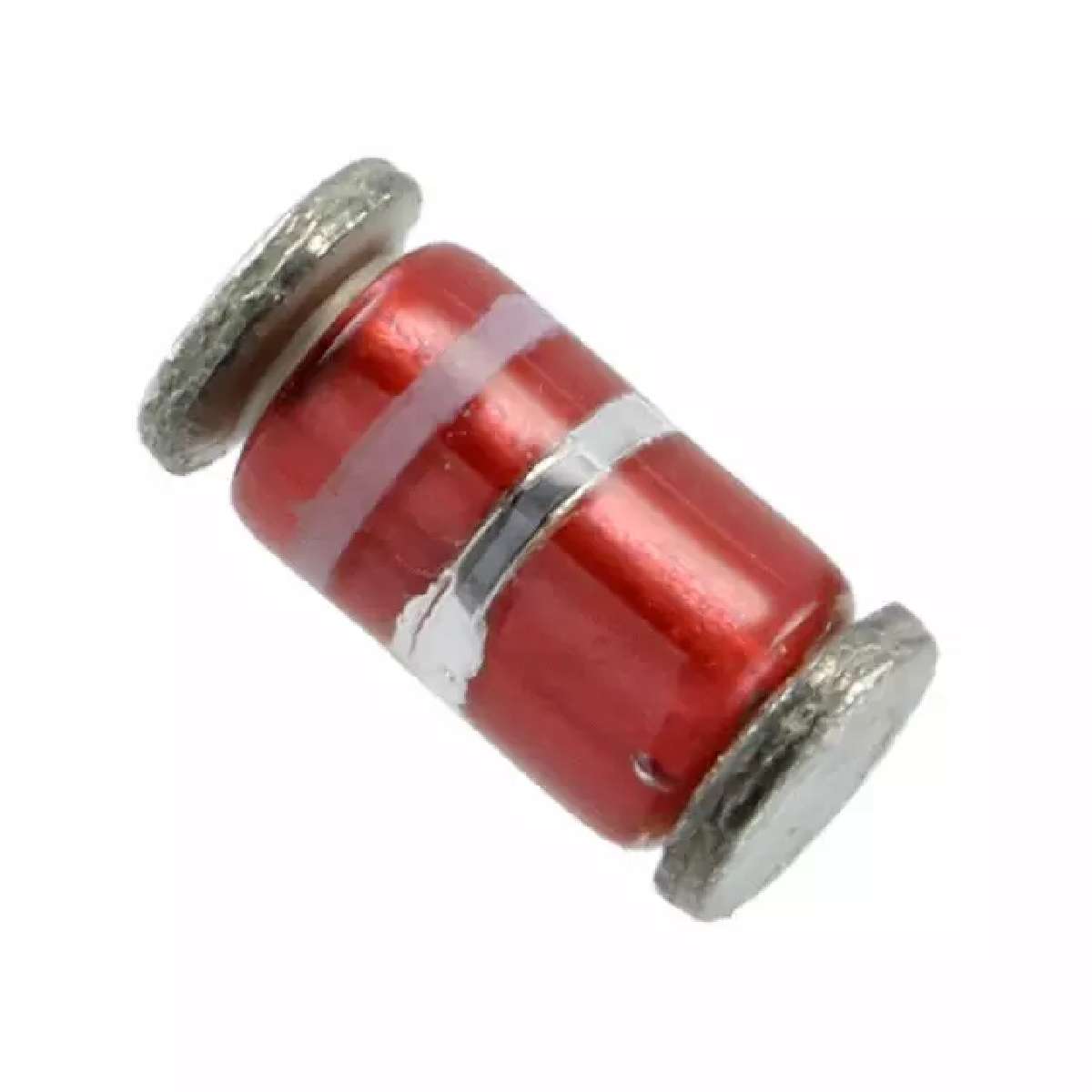

Now you can operate a diode in its reverse breakdown region by using a voltage regulator CDLL4107 zener diode from Microsemi. This device has a maximum regulator current of 29 mA. Its maximum power dissipation is 500 mW. Its test current is 0.25 mA. Its maximum leakage current is 0.05 μA. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single configuration. This zener device has a nominal voltage of 13 V and a voltage tolerance of 5%.
Verical:
Zener Diode Single 13V 5% 200Ohm 500mW 2-Pin DO-213AA Bag
