CAY16-220J4LF

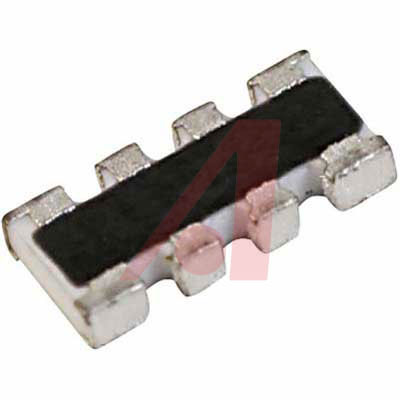

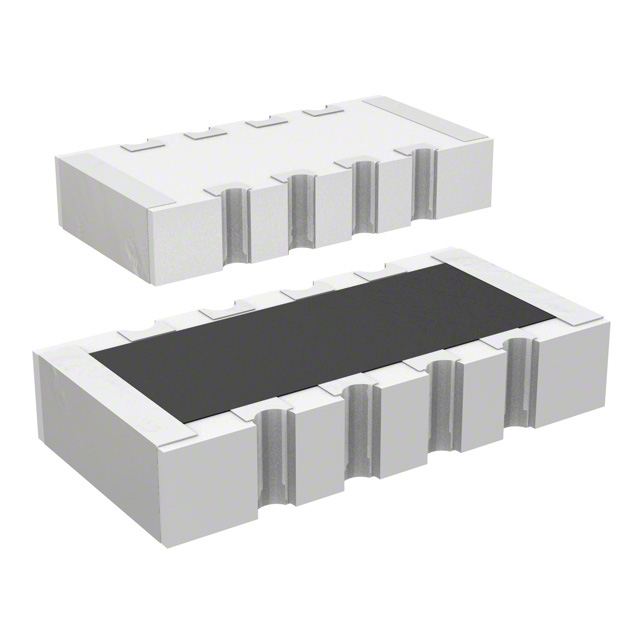

BOURNS  CAY16-220J4LF  电阻阵列, 4, 22Ω, 5%, SMD

CAY16 系列凸面片式器阵列

Bourns CAY 16 系列片式电阻器阵列提供 4 或 8 隔离式元件。

凸面接线端子

电阻容差 ±1 % 和 ±5 %

电阻范围：10 Ω 至 1 MΩ

得捷:
RES ARRAY 4 RES 22 OHM 1206

欧时:
### CAY16 系列凸面片式电阻器阵列Bourns CAY 16 系列片式电阻器阵列提供 4 或 8 隔离式元件。 凸面接线端子 电阻容差 ±1 % 和 ±5 % 电阻范围：10 Ω 至 1 MΩ ![http://china.rs-online.com/largeimages/L241922-02.gif]http://china.rs-online.com/largeimages/L241922-02.gif![http://china.rs-online.com/largeimages/L5225377-01.gif]http://china.rs-online.com/largeimages/L5225377-01.gif ![http://china.rs-online.com/largeimages/LD241922-01.gif]http://china.rs-online.com/largeimages/LD241922-01.gif ### 表面安装 - 隔离/总线

立创商城:
22Ω ±5%

e络盟:
固定阵列电阻, 22 ohm, CAY16系列, 4 元件, 隔离, 1206 [3216公制], 8 引脚

艾睿:

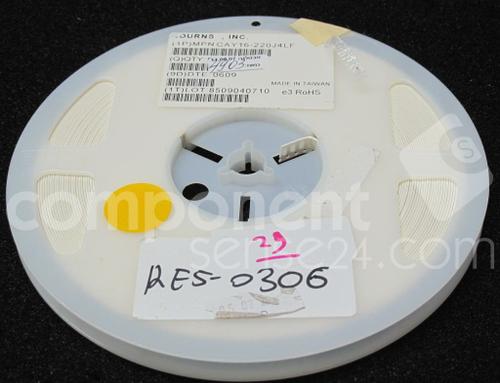

Are you looking for a power-saving component that can be implemented in your circuit design? Bourns brings you their CAY16-220J4LF resistor array, essentially an IC chip with multiple resistors built in. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. This product&s;s 4 resistors have a value of 22 Ohm. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product&s;s terminal pitch is 0.8 mm. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. The CAY16-220J4LF part has a convex termination style.

Allied Electronics:
Resistor; Chip Array; 22 Ohms; Tol 5%; 62 mW; 50V Max; 250ppm; Convex Termin.

安富利:
Res Thick Film Array 22 Ohm 5% ISOL Molded 8-Pin 1206 Convex SMD Paper T/R

Chip1Stop:
Res Thick Film Array 22 Ohm 5% 0.25W1/4W ﾂｱ200ppm/C ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R

Verical:
Res Thick Film Array 22 Ohm 5% 0.25W1/4W ±200ppm/C ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R

Newark:
# BOURNS  CAY16-220J4LF  RESISTOR, ARRAY-4, 22OHM, 5%, SMD

MASTER:
Res Thick Film Array 22 Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Convex SMD T/R

Electro Sonic:
Res Thick Film Array 22 Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Convex SMD T/R

Win Source:
RES ARRAY 4 RES 22 OHM 1206 / 22 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 3216 Metric, Convex, Long Side Terminals
