ON SEMICONDUCTOR CAT6243-ADJMT5T3 芯片, 稳压器, LDO, 可调, 1A, 6WDFN
低压降 LDO 线性电压调节器,1A,
得捷:
IC REG LINEAR POS ADJ 1A 6WDFN
欧时:
ON Semiconductor CAT6243 系列 CAT6243-ADJMT5T3 线性稳压器, 1.8 → 5.5 V输入, 5 V输出, ±1%精确度
e络盟:
# ON SEMICONDUCTOR CAT6243-ADJMT5T3 芯片, 稳压器, LDO, 可调, 1A, 6WDFN
艾睿:
Use this LDO CAT6243-ADJMT5T3 linear regulator from ON Semiconductor to vary your voltage levels to your desired level. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 1.8 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 2% and line regulation of 0.2%/V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.6@300mA|0.11@300mA|0.085@300mA|0.625@1A|0.35@1A|0.275@1A V. Its polarity is positive.
Allied Electronics:
LDO regulator, voltage, adjustable, 1A, DFN6
安富利:
LDO Regulator Pos 0.8V to 5V 1A 6-Pin WDFN EP T/R
富昌:
CAT6243 Series 6V Adjustable 1 Amp Adj CMOS LDO Voltage Reg-WDFN−6, 3 mm x 3 mm
Verical:
LDO Regulator Pos 0.8V to 5V 1A 6-Pin WDFN EP T/R
力源芯城:
1A可调CMOS 低压差稳压器
DeviceMart:
IC REG LDO ADJ 1A 6WDFN
Win Source:
IC REG LDO ADJ 1A 6WDFN
无卤素状态 Halogen Free
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 1 A
供电电流 100µA ~ 250µA
针脚数 6
极性 P-Channel
跌落电压 350 mV
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电压Max 5 V
输出电压Min 800 mV
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 6

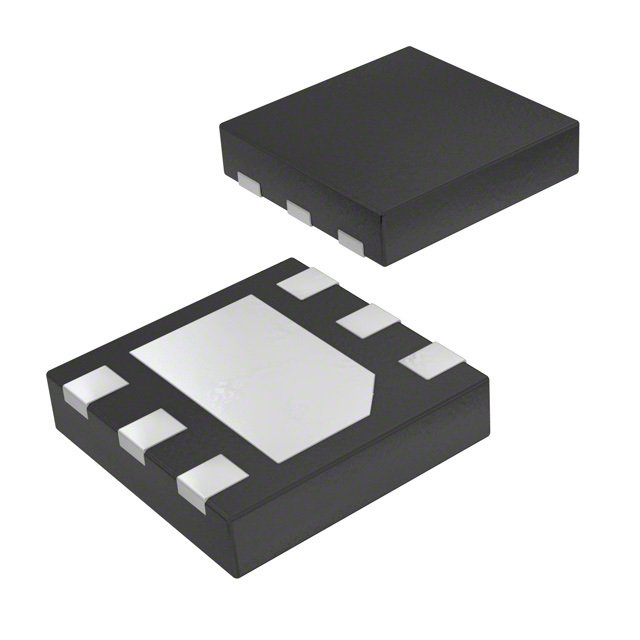

封装 WDFN-6
长度 3 mm
宽度 3 mm
高度 0.75 mm
封装 WDFN-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 DSP Core and I/O Voltages, PDAs, Mobile Phones, GPS, FPGAs, ASICs, Camcorders and Cameras, Hard Disk Drives
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT6243-ADJMT5T3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
TPS7A7100RGWT 德州仪器 | 功能相似 | CAT6243-ADJMT5T3和TPS7A7100RGWT的区别 |
TPS7A7100RGWR 德州仪器 | 功能相似 | CAT6243-ADJMT5T3和TPS7A7100RGWR的区别 |
