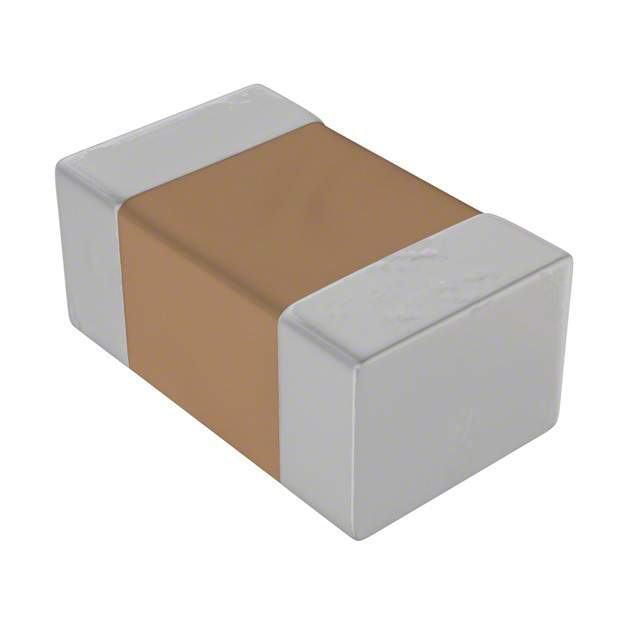

0805 1uF ±20% 16V X8R
1µF ±20% 16V Ceramic Capacitor X8R 0805 2012 Metric
得捷:
CAP CER 1UF 16V X8R 0805
立创商城:
1uF ±20% 16V
艾睿:
Use TDK&s;s C2012X8R1C105M125AB multilayer ceramic capacitor for various purposes in multiple applications. It can withstand a voltage of 16 VDC. This MLCC capacitor has a maximum operating temperature of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 20%. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep. Its capacitance value is 1uF.
Verical:
Cap Ceramic 1uF 16V X8R 20% Pad SMD 0805 150C T/R
额定电压DC 16 V
电容 1 µF
容差 ±20 %
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
材质 X8R/-55℃~+150℃
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Commercial Grade, 通用, Please refer to Part No., for Automotive use.
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C2012X8R1C105M125AB TDK 东电化 | 当前型号 | 当前型号 |
C2012X8R1C105K125AB 东电化 | 功能相似 | C2012X8R1C105M125AB和C2012X8R1C105K125AB的区别 |
