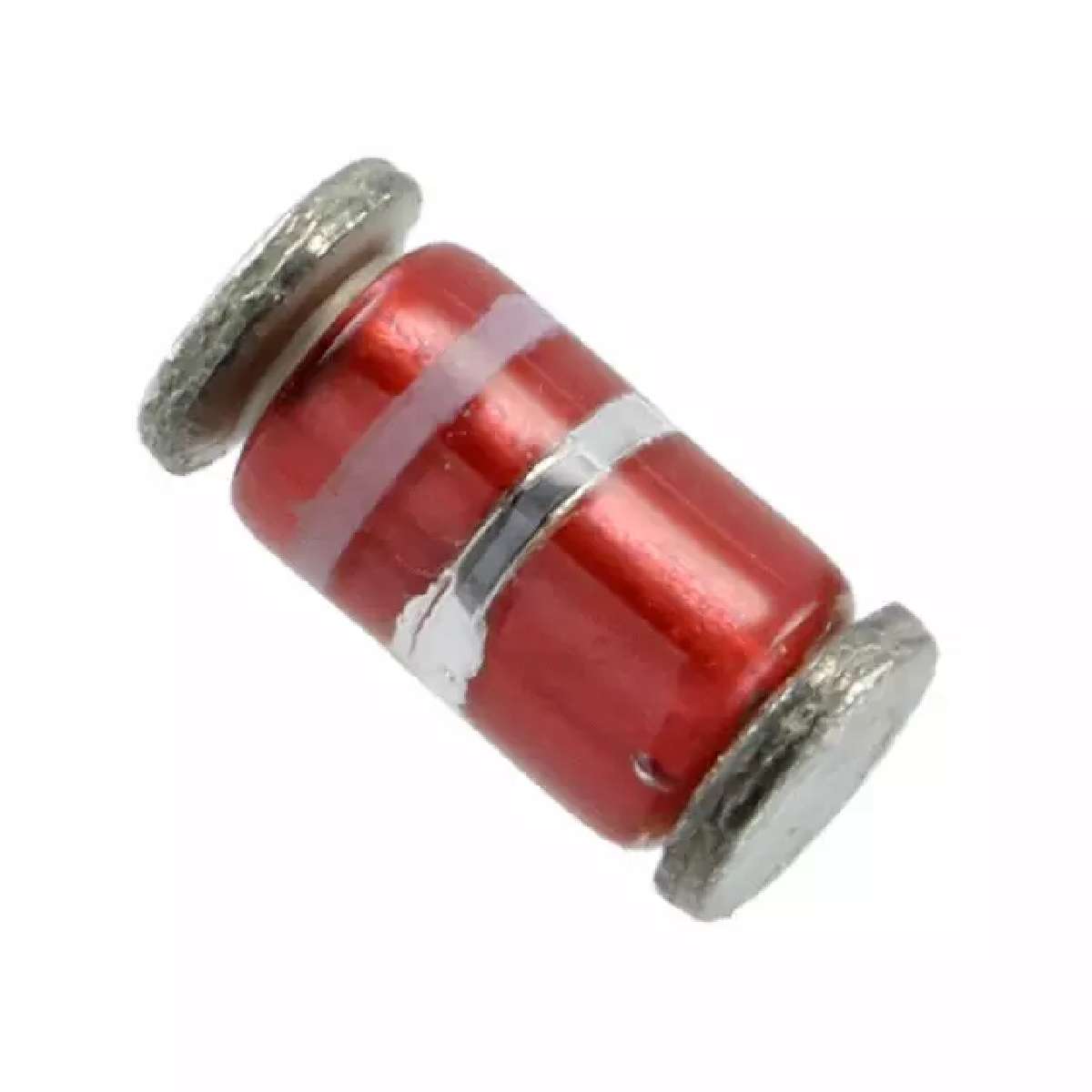

CDLL4106

DO-213AA 12V 0.5W1/2W

• 1N4099UR-1 THRU 1N4135UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435

• LEADLESS PACKAGE FOR SURFACE MOUNT

• LOW CURRENT OPERATION AT 250 µA

• METALLURGICALLY BONDED

• DOUBLE PLUG CONSTRUCTION

艾睿:
When your circuit requires a diode to act in the reverse-breakdown region use a voltage regulator CDLL4106 zener diode from Microsemi. Its maximum power dissipation is 500 mW. Its maximum leakage current is 0.05 μA. This device has a maximum regulator current of 32 mA. Its test current is 0.25 mA. This zener device has a nominal voltage of 12 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 175 °C. It is made in a single configuration.

Chip1Stop:
Diode Zener Single 12V 5% 500mW 2-Pin DO-213AA

TME:
Diode: Zener; 500mW; 12V; 32mA; SMD; DO213AA; Ir:50nA; Urmax:9.2V

Verical:
Zener Diode Single 12V 5% 200Ohm 500mW 2-Pin DO-213AA Bag
