0805 6.8uF ±10% 10V X7R
6.8 µF ±10% 10V 陶瓷器 X7R 0805(2012 公制)
得捷:
CAP CER 6.8UF 10V X7R 0805
立创商城:
6.8uF ±10% 10V
艾睿:
Since this C2012X7R1A685K125AC multilayer ceramic capacitor from TDK has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep. It has a tolerance of 10%. Its capacitance value is 6.8uF.
安富利:
Cap Ceramic 6.8uF 10V X7R 10% SMD 0805 125°C Blister Plastic T/R
Chip1Stop:
Cap Ceramic 6.8uF 10V X7R 10% SMD 2.0 x 1.2 mm 125 C Plastic T/R
Verical:
Cap Ceramic 6.8uF 10V X7R 10% Pad SMD 0805 125C Low ESR T/R
额定电压DC 10.0 V
电容 6.8 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 2012
封装 0805

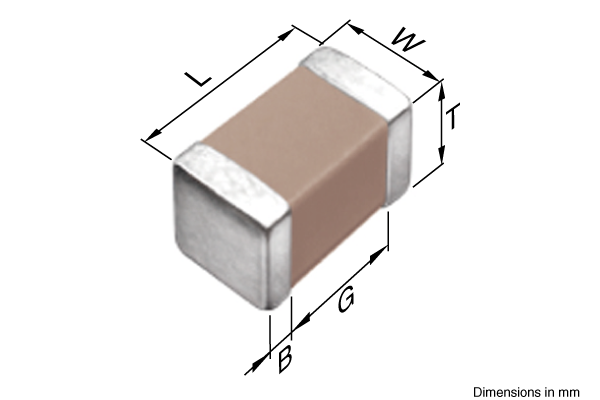

长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
厚度 1.25 mm
材质 X7R/-55℃~+125℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 通用, Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C2012X7R1A685K125AC TDK 东电化 | 当前型号 | 当前型号 |
C2012X7R0J685M125AB 东电化 | 功能相似 | C2012X7R1A685K125AC和C2012X7R0J685M125AB的区别 |
C2012X7R1A685M125AC 东电化 | 功能相似 | C2012X7R1A685K125AC和C2012X7R1A685M125AC的区别 |
