C0805X102KDRACTU概述

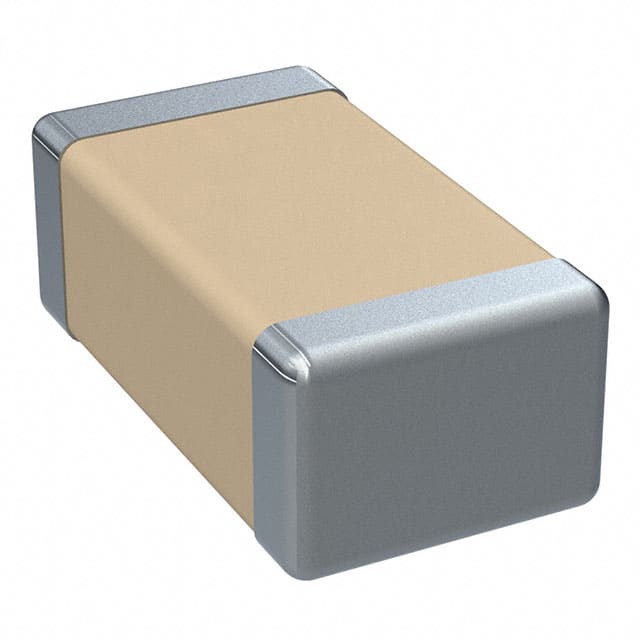

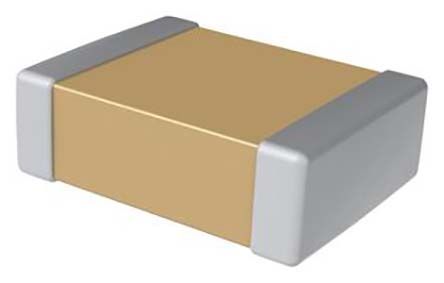

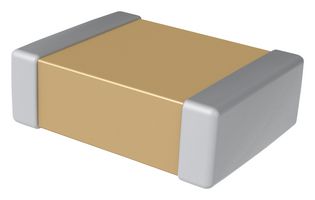

KEMET  C0805X102KDRACTU  多层陶瓷电容器, 表面贴装, FT-CAP, AEC-Q200 X系列, 1000 pF, ± 10%, X7R, 1 kV, 0805 [2012 公制]

The X series surface mount Multilayer Ceramic Chip Capacitor in X7R dielectric address the primary failure mode of MLCCs - flex cracks, which are typically the result of excessive tensile and shear stresses produced during board flexure and thermal cycling. Featuring several of the highest CV capacitance/voltage values available in the industry, these devices utilize a pliable and conductive silver epoxy between the base metal and nickel barrier layers of the termination system. The addition of this epoxy layer inhibits the transfer of board stress to the rigid ceramic body, therefore mitigating flex cracks which can result in low IR or short-circuit failures. Although flexible termination technology does not eliminate the potential for mechanical damage that may propagate during extreme environmental and handling conditions, it does provide superior flex performance over standard termination systems.

.
Industry-leading CV values
.
Superior flex performance up to 5mm
.
Exceptional performance at high frequencies
.
Low ESR and ESL
.
Non-polar device, minimizing installation concerns
.
100% Pure matte tin-plated termination finish allowing for excellent solderability
.
SnPb plated termination finish option available 5% Pb minimum
.
EIA 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes available
.
DC voltage ratings of 500, 630V, 1, 1.5, 2, 2.5 and 3kV
.
Capacitance offerings ranging from 10pF to 560nF
.
Available capacitance tolerances of ±5%, ±10% or ±20%
C0805X102KDRACTU中文资料参数规格
技术参数

额定电压DC 1 kV

绝缘电阻 100 GΩ

电容 1000 pF

容差 ±10 %

额定功率 0.25 W

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 1 kV

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 2012

封装 0805

引脚间距 0.75 mm

外形尺寸

长度 2.1 mm

宽度 1.25 mm

高度 1.25 mm

封装公制 2012

封装 0805

引脚间距 0.75 mm

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Industrial, 车用, 通信与网络, 电源管理, Lighting, 工业, 医用, 照明, Medical, Automotive, Communications & Networking, Power Management, Boardflex 敏感

符合标准

RoHS标准 RoHS Compliant

含铅标准

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

C0805X102KDRACTU引脚图与封装图
C0805X102KDRACTU引脚图
C0805X102KDRACTU封装图

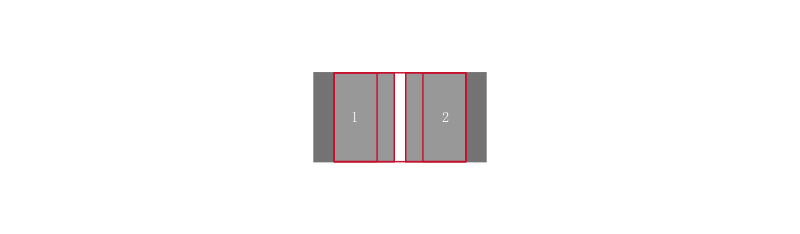

C0805X102KDRACTU封装焊盘图
在线购买C0805X102KDRACTU
型号: C0805X102KDRACTU
描述:KEMET  C0805X102KDRACTU  多层陶瓷电容器, 表面贴装, FT-CAP, AEC-Q200 X系列, 1000 pF, ± 10%, X7R, 1 kV, 0805 [2012 公制]
替代型号C0805X102KDRACTU
型号/品牌 代替类型 替代型号对比

C0805X102KDRACTU

KEMET Corporation 基美

当前型号

当前型号

102R15W102KV4E

约翰逊

完全替代

C0805X102KDRACTU和102R15W102KV4E的区别

C0805C102KDRACTU

基美

类似代替

C0805X102KDRACTU和C0805C102KDRACTU的区别

C0805C102KDRACAUTO

基美

类似代替

C0805X102KDRACTU和C0805C102KDRACAUTO的区别
