1.2uH ±25% 4.5A
屏蔽 - 器 20.5 毫欧最大 非标准
得捷:
FIXED IND 1.2UH 4.5A 20.5MOHM SM
立创商城:
1.2uH ±25% 4.5A 16.4mΩ
艾睿:
Inductor Power Shielded Drum Core 1.2uH 25% 100KHz Ferrite 4.5A 20.5mOhm DCR T/R
Chip1Stop:
Inductor Power Shielded Drum Core 1.2uH 25% 100KHz Ferrite 4.5A 20.5mOhm DCR Carrier T/R
额定电流 4.5 A
电感 1.2 µH
产品系列 CDR7D28MNNP
屏蔽 Yes
电感公差 ±25 %
电阻DC) 20.5 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.0205 Ω
安装方式 Surface Mount

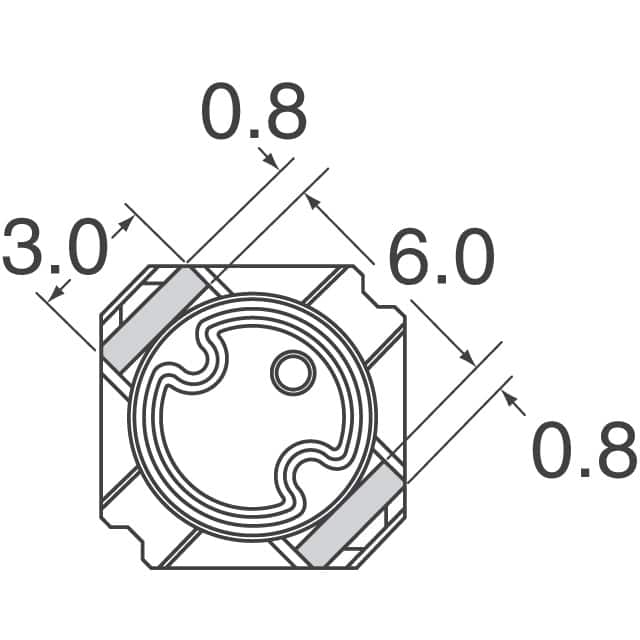

封装 0.299" L x 0.299" W x 0.118" H 7.60mm x 7.60mm x 3.00mm
长度 7.6 mm
宽度 7.6 mm
高度 3.00 mm
封装 0.299" L x 0.299" W x 0.118" H 7.60mm x 7.60mm x 3.00mm
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
