瞬时闭锁装置 - TBU ？设备 Transient Blocking Units - TBU? Devices

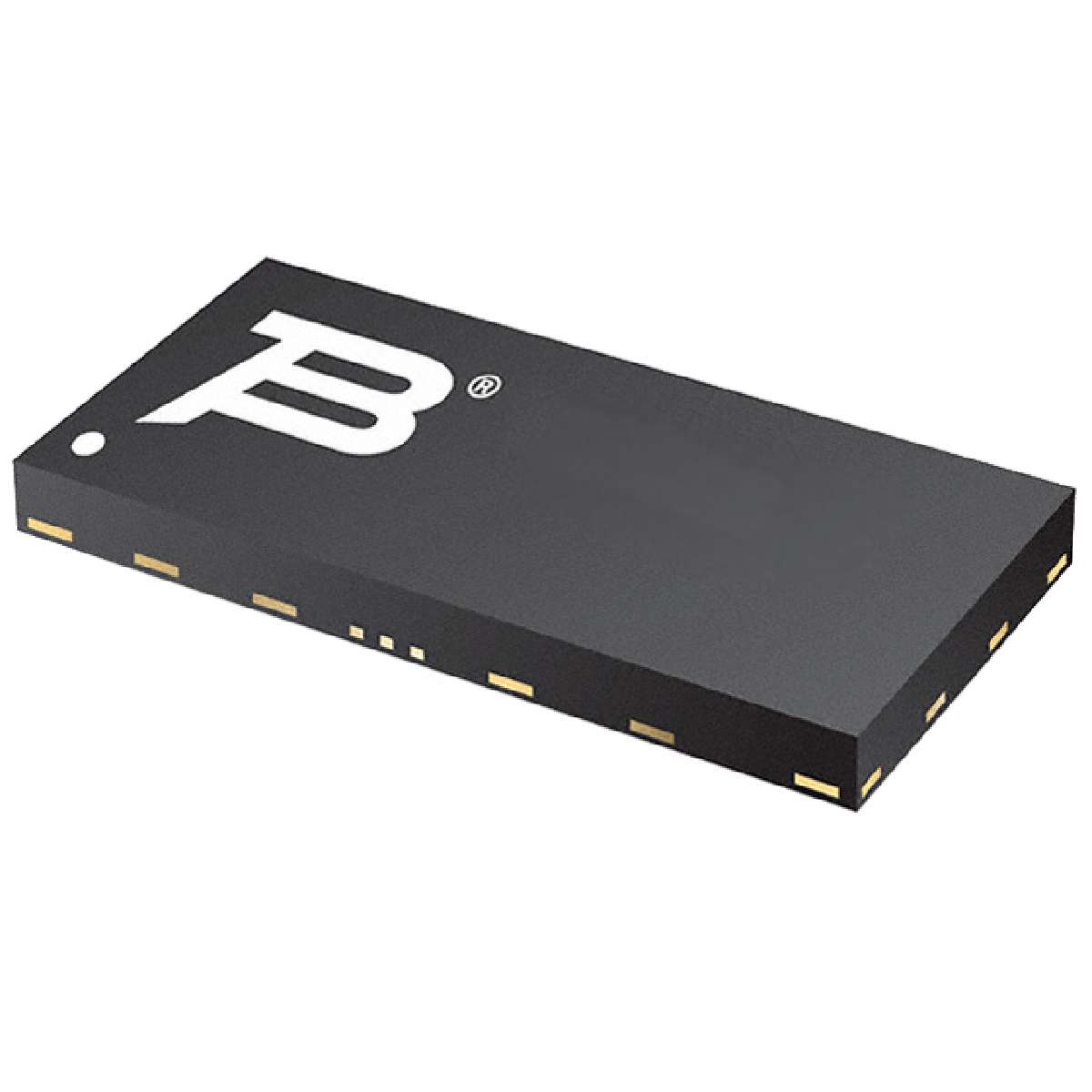

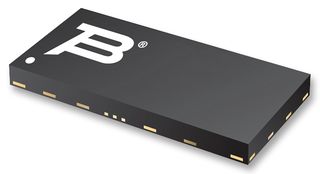

Bourns® C650 and C850 series products are high speed bidirectional protection components, constructed using MOSFET semiconductor technology, designed to protect against faults caused by short circuits, AC power cross, induction and lightning surges.
Features
■ Formerly FulTec brand
■ Extremely high speed performance
■ Blocks high voltages and currents
■ Very high bandwidth; GHz compatible
■ Small package, minimal PCB area
■ Simple, superior circuit protection
额定电压DC 300 V
工作电压 300 V
额定电流 100 mA
输出电流 200 mA
电路数 1
电阻 12.0 Ω
输出电流Max 200 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 300 Vrms
安装方式 Surface Mount
引脚数 3
封装 DFN-3

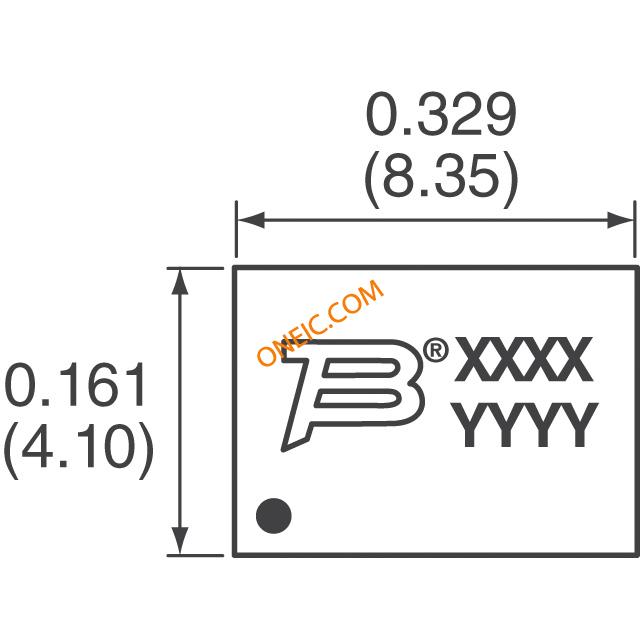

长度 8.25 mm
宽度 4 mm

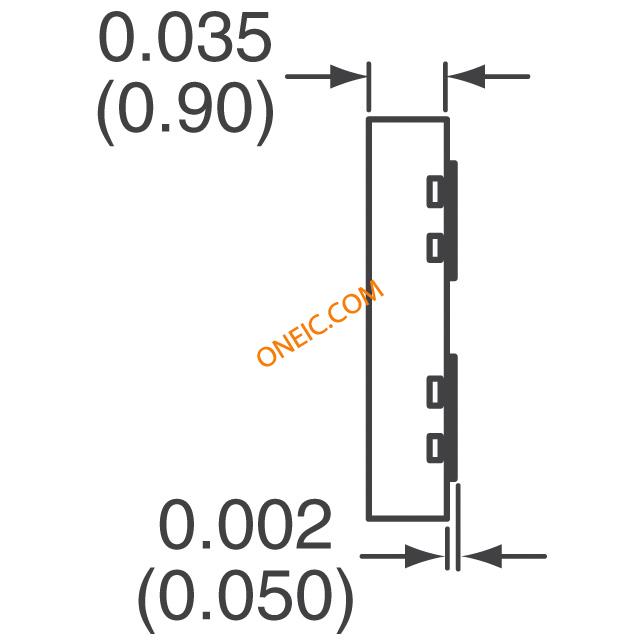

高度 0.95 mm
封装 DFN-3
工作温度 -40℃ ~ 85℃
产品生命周期 NRND: Not recommended for new designs.
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
