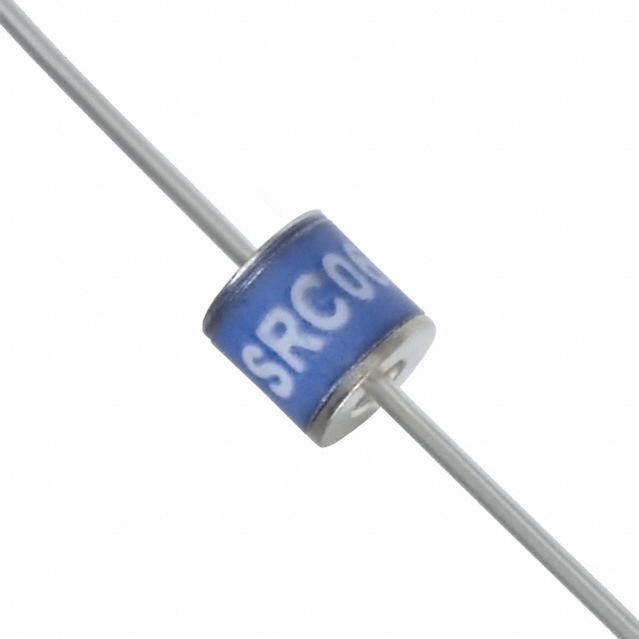

LITTELFUSE CG590L 气体放电管 GDT, Low Capacitance, CG5系列, 90 V, 2终端通孔, 500 A, 700 V
** CG Series Gas diskharge Tube**
Littelfuse CG series GDT plasma arresters are ideal for use in the protection of test and communication equipment in which low voltage limits and extremely low arc voltages are required. Applications include communication lines, CATV equipment, test equipment, data lines, power supplies, instrumentation circuits and medical electronics.
e络盟:
气体放电管 GDT, Low Capacitance, CG5系列, 90 V, 2终端通孔, 500 A, 700 V
艾睿:
Littelfuse&s;s CG590L gas discharge tube is a good choice for surge protection. Its DC sparkover voltage is 90 V, and its impulse discharge current 8x20 us, 10 Hits is 5 A. This item should be stored between -40 °C and 90 °C. This GDT has a minimum operating temperature of -40 °C and a maximum of 90 °C. It has 2 terminals/electrodes. The CG590L GDT has an axial termination style. This part has a lead diameter of 0.8 mm. This product is 5 mm long, 5 mm tall and 5 mm deep.
Allied Electronics:
ARRESTOR; 90 V MIN. BREAKDOWN; RUGGED CERAMIC-METAL PACKAGE; 1 PF MAX.
Chip1Stop:
Gas Discharge Tubes 90VDC 10KADC 5AAC 1.5pF Axial Thru-Hole
Verical:
Gas Discharge Tubes 90VDC 10KADC 5AAC 1.5pF Axial Thru-Hole
Newark:
# LITTELFUSE CG590L GAS DISCHARGE TUBE, 2 POL, 500A, 700V
工作电压 25 V
电容 1 pF
击穿电压 113 V
供电电流 5 A
工作温度Max 90 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 2终端通孔
长度 9.3 mm
宽度 5 mm
高度 5 mm
直径 8.10 mm
封装 2终端通孔
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Test & Measurement, Industrial, 信令, 电源管理, 安全, Medical, 通信与网络, Safety, Communications & Networking, 工业, Signalling, 医用, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CG590L Littelfuse 力特 | 当前型号 | 当前型号 |
2035-09-BLF 伯恩斯 | 功能相似 | CG590L和2035-09-BLF的区别 |
2035-09-BT1LF 伯恩斯 | 功能相似 | CG590L和2035-09-BT1LF的区别 |
CG90L 力特 | 功能相似 | CG590L和CG90L的区别 |
