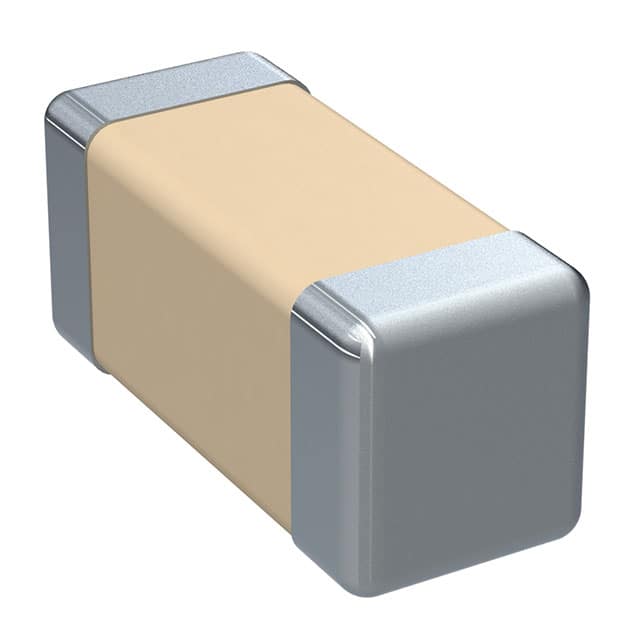

Cap Ceramic 56pF 100V C0G 5% Pad SMD 0603 125℃ T/R
SMD Comm C0G SnPb, Ceramic, Commercial Grade, 56 pF, 5%, 100 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0603
立创商城:
56pF ±5% 100V
得捷:
CAP CER 56PF 100V NP0 0603
艾睿:
Available with a variety of capacitance values, voltage ratings, package sizes, and other parameters, this C0603C560J1GALTU multilayer ceramic capacitor from Kemet can be used in multiple applications and for various purposes. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 56pF. It has a tolerance of 5%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
Verical:
Cap Ceramic 56pF 100V C0G 5% Pad SMD 0603 125C Extreme Low ESR T/R
额定电压DC 100 V
绝缘电阻 100 GΩ
电容 56 PF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603
引脚间距 0.7 mm
长度 1.6 mm
宽度 1.6 mm
高度 0.8 mm
封装公制 1608
封装 0603
引脚间距 0.7 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0603C560J1GALTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
06031A560KAJ2A 艾维克斯 | 功能相似 | C0603C560J1GALTU和06031A560KAJ2A的区别 |
