CD43NP-3R9MC

3.9uH ±20% 1.84A

3.9 µH 无屏蔽 - 器 1.84 A 93.7 毫欧最大 非标准

得捷:
FIXED IND 3.9UH 1.84A 93.7 MOHM

艾睿:

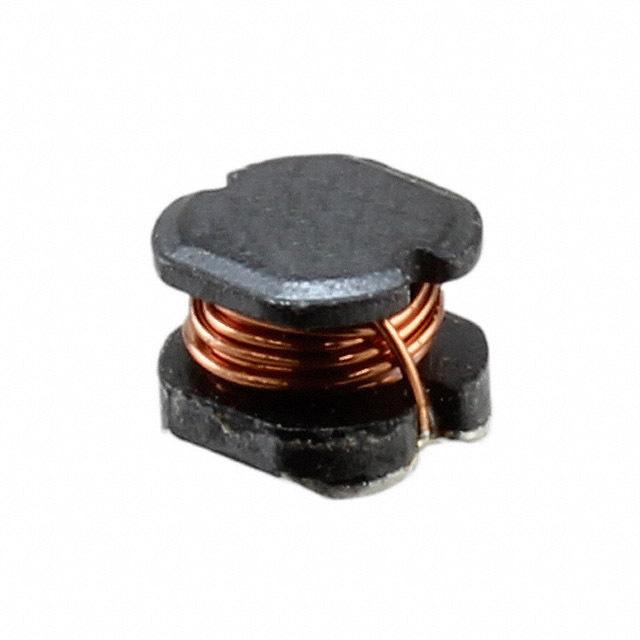

This power CD43NP-3R9MC surface mount inductor from Sumida Corporation is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 20%. This product is 4.8 mm long, 3.5 mm tall and 4.3 mm deep. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 53.8MTyp Hz. It has an inductance of 3.9u H. This device is made with drum core technology. This SMD inductor has a maximum DC current of 1.84 A with a maximum resistance of 93.7m Ohm.

安富利:
Ind Power Unshielded Wirewound 3.9uH 20% 7.96MHz 1.84A Carrier T/R

Win Source:
FIXED IND 3.9UH 1.84A 93.7 MOHM / 3.9 µH Unshielded Inductor 1.84 A 93.7mOhm Max Nonstandard
