0805 680nF ±20% 100V X7S
0.68µF ±20% 100V Ceramic Capacitor X7S 0805 2012 Metric
得捷:
CAP CER 0.68UF 100V X7S 0805
立创商城:
680nF ±20% 100V
艾睿:

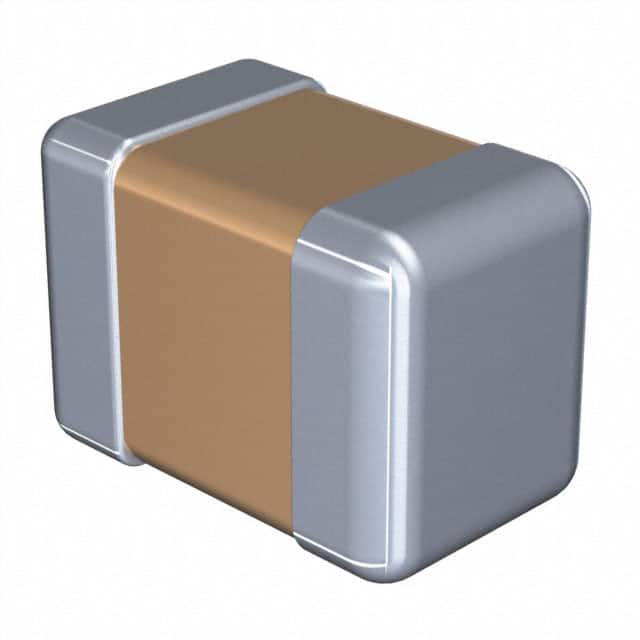

This C2012X7S2A684M125AB multilayer ceramic capacitor from TDK has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep. Its capacitance value is 0.68uF. It has a tolerance of 20%.
Verical:
Cap Ceramic 0.68uF 100V X7S 20% Pad SMD 0805 125C T/R
额定电压DC 100 V
电容 680000 PF
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
材质 X7S/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 通用, for Automotive use., Please refer to Part No., Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C2012X7S2A684M125AB TDK 东电化 | 当前型号 | 当前型号 |
C2012X7S2A684K125AB 东电化 | 类似代替 | C2012X7S2A684M125AB和C2012X7S2A684K125AB的区别 |
CGA4J3X7S2A684M125AB 东电化 | 类似代替 | C2012X7S2A684M125AB和CGA4J3X7S2A684M125AB的区别 |
