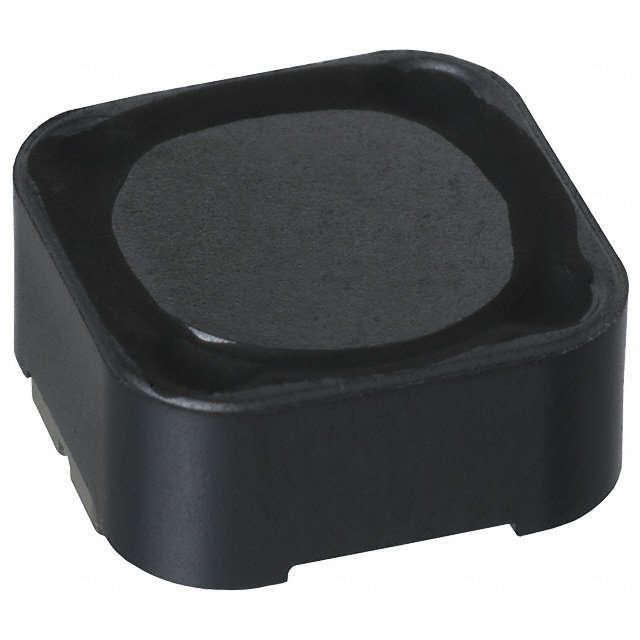

CDRH125NP-4R4NC

CDRH 系列 4.4 uH -20/+30 % 容差 5 A 屏蔽 表面贴装 功率电感

4.4µH Shielded Inductor 5A 20mOhm Max Nonstandard

得捷:
FIXED IND 4.4UH 5A 20 MOHM SMD

立创商城:
4.4uH -20%~+30% 5A 16mΩ

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power CDRH125NP-4R4NC surface mount inductor from Sumida Corporation to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 5 A with a maximum resistance of 20m Ohm. This device is made with drum core technology. Its test frequency is 1K Hz. It has an inductance of 4.4u H. This product is 12.3 mm long, 6 mm tall and 12.3 mm deep.

Chip1Stop:
Ind Power Shielded Wirewound 4.4uH -20% to 30% 1KHz Ferrite 5A Carrier T/R

儒卓力:
**CDRH125NP 4,4uH 5000mA +30/-20% **
