0805 470nF ±10% 6.3V X7R
±10% 6.3V 陶瓷器 X7R 0805(2012 公制)
得捷:
CAP CER 0.47UF 6.3V X7R 0805
立创商城:
470nF ±10% 6.3V
艾睿:

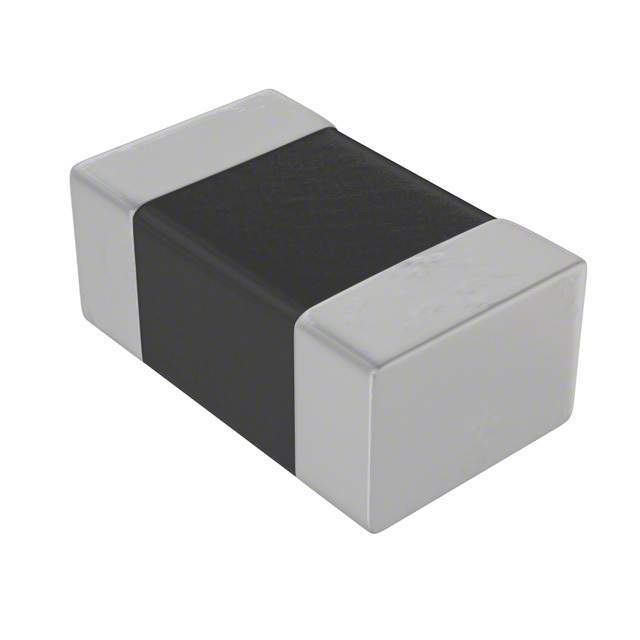

Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this CGJ4J2X7R0J474K125AA multilayer ceramic capacitor from TDK! It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 0.47uF. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep. It has a tolerance of 10%.
Chip1Stop:
Cap Ceramic 0.47uF 6.3V X7R 10% SMD 0805 125ÂÂ℃ Automotive Plastic T/R
Verical:
Cap Ceramic 0.47uF 6.3V X7R 10% Pad SMD 0805 125C Automotive T/R
额定电压DC 6.3 V
电容 470000 PF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 3000
制造应用 High Reliability Grade, 汽车级, 高可靠性
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CGJ4J2X7R0J474K125AA TDK 东电化 | 当前型号 | 当前型号 |
CGJ4J2X7R1C474K125AA 东电化 | 功能相似 | CGJ4J2X7R0J474K125AA和CGJ4J2X7R1C474K125AA的区别 |
CGJ4J2X7R1E474K125AA 东电化 | 功能相似 | CGJ4J2X7R0J474K125AA和CGJ4J2X7R1E474K125AA的区别 |
CGJ4J2X7R1A474K125AA 东电化 | 功能相似 | CGJ4J2X7R0J474K125AA和CGJ4J2X7R1A474K125AA的区别 |
