C317C470J2G5TA

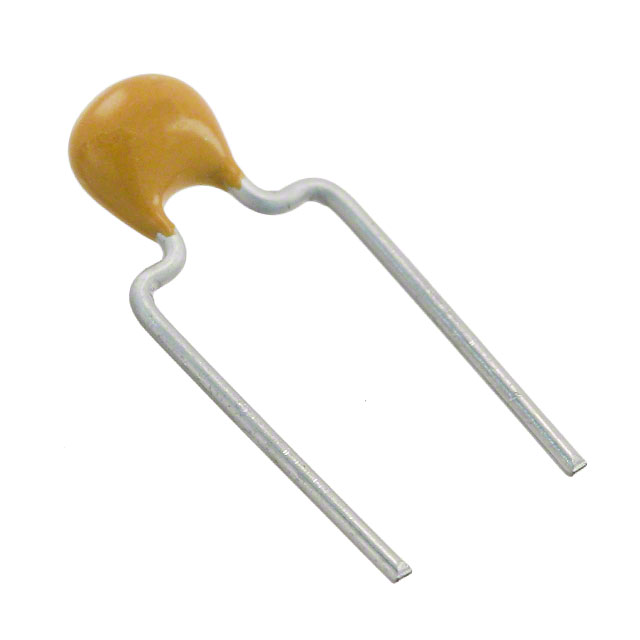

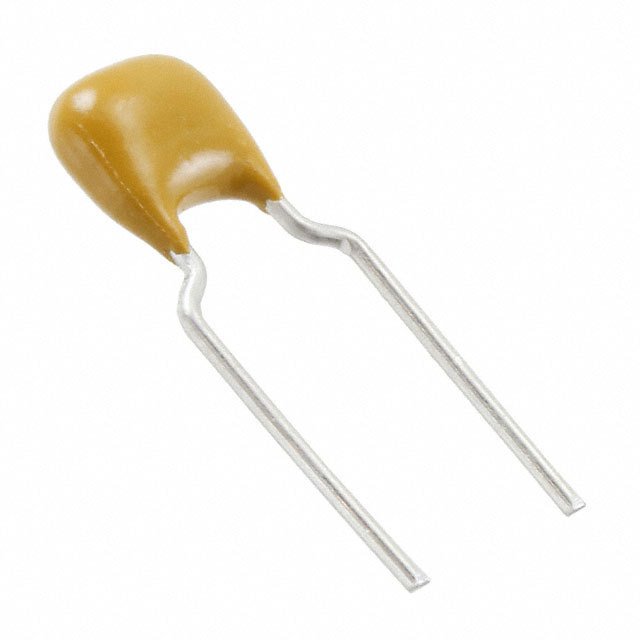

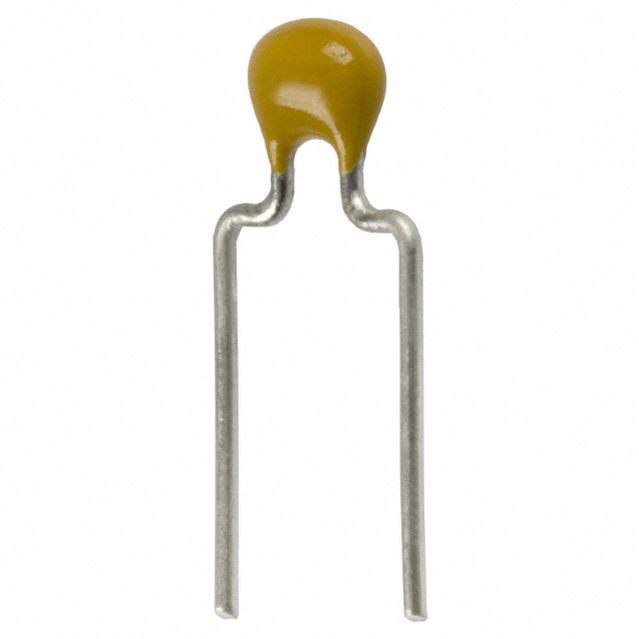

KEMET  C317C470J2G5TA  多层陶瓷电容, Gold Max, C317系列, 47 pF, ± 5%, C0G / NP0, 200 V, 径向引线

The Kemet C317 series are radial leaded, standard Goldmax multilayer ceramic capacitor with C0G dielectric material. MLCCs are monolithic devices that consist of laminated layers of specially formulated ceramic dielectric materials interspersed with metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.

.

Capacitance value ranges from 1pF to 0.12µF

.

Rated DC voltage of 50V, 100V, 200V, 500V and 1KV

.

±0.25pF, ±0.5pF, ±1%, ±2% and ±5% tolerance

.

100% matte tin Sn and nickel Ni plating with steel core

.

Dimension is 3.81mm x 5.84mm L x H

.

5.08mm pitch spacing

.

Epoxy encapsulated

.

Temperature coefficient is 0 ±30ppm/°C

.

Operating temperature range from -55°C to 125°C
