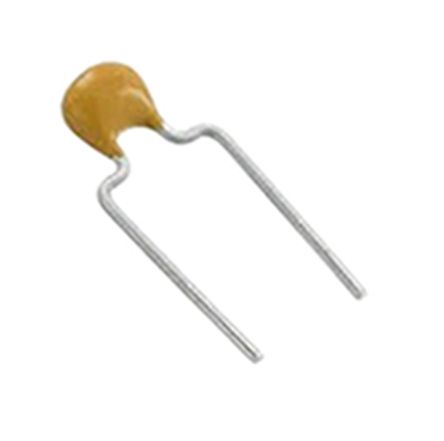

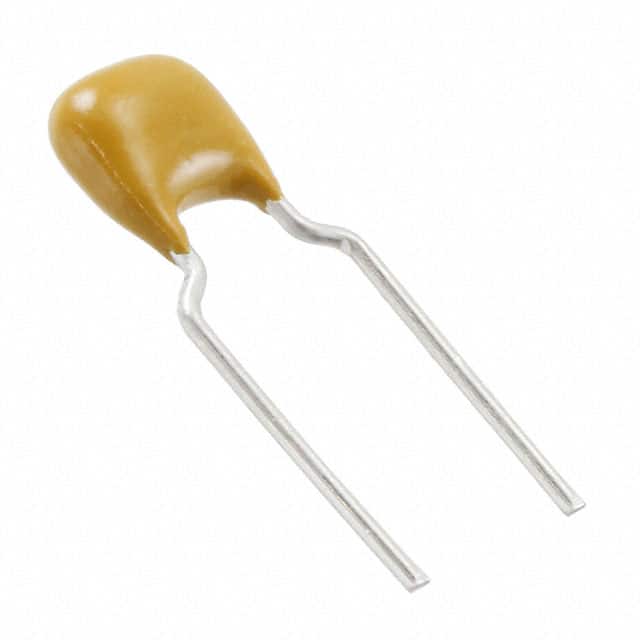

KEMET C322C473KDR5TA 多层陶瓷电容, 300 Series, 0.047 µF, ± 10%, X7R, 1 kV, 径向引线
C315/C317/C320/C322/C330/C331 系列
专业系列高电压多层陶瓷器。 在高频率下,这些电容器具有低 ESR,且可用作传统使用,用作应用中的减震器或过滤器。 这些电容器通常用于电信、医疗、军用和航空设备。
X7R 电介质
保护涂层
径向
得捷:
CAP CER 0.047UF 1KV X7R RADIAL
欧时:
### C315/C317/C320/C322/C330/C331 系列专业系列高电压多层陶瓷电容器。 在高频率下,这些电容器具有低 ESR,且可用作传统使用,用作应用中的减震器或过滤器。 这些电容器通常用于电信、医疗、军用和航空设备。X7R 电介质 保护涂层 径向 ### X7R 电介质适合于旁路、退耦、滤波、采样、控制和计时电路装置。
立创商城:
47nF ±10% 1kV
e络盟:
多层陶瓷电容, 47000 pF, 1 kV, Goldmax, 300系列, ± 10%, 径向引线, X7R
艾睿:
Cap Ceramic 0.047uF 1000V X7R 10% Radial 5.08mm 125°C Bag/Bulk
Allied Electronics:
322 C322 0.047uF Ceramic Multilayer Capacitor, 1000VDC, +125C, X7R Dielec, +/-10%
安富利:
Goldmax conformally coated radial leaded ceramic capacitors in Z5U dielectric feature an 85°C maximum operating temperature and are considered “general-purpose.” The Electronics Industries Alliance EIA characterizes Z5U dielectric as a Class III material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling or other applications in which dielectric losses, high insulation resistance and capacitance stability are not of major importance. Z5U exhibits a predictable change in capacitance with respect to time and voltage and displays wide variations in capacitance with reference to ambient temperature. Capacitance change is limited to +22%, -56% from +10°C to +85°C.
Verical:
Cap Ceramic 0.047uF 1000V X7R 10% Radial 5.08mm 125C Bag/Bulk
Newark:
# KEMET C322C473KDR5TA Multilayer Ceramic Capacitor, 300 Series, 0.047 F, 10%, X7R, 1 kV, Radial Leaded
额定电压DC 1.00 kV
电容 47000 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 1 kV
安装方式 Through Hole
封装 Radial
引脚间距 5.08 mm
长度 5.08 mm
宽度 3.18 mm
高度 5.84 mm
封装 Radial
引脚间距 5.08 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±15 %
产品生命周期 Active
包装方式 Each
制造应用 Power Management, Aerospace, Defence, Military, 工业, Industrial, 便携式器材, 国防, 通用, 军用与航空, 国防, 军用与航空, Consumer Electronics, Portable Devices, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/06/15
