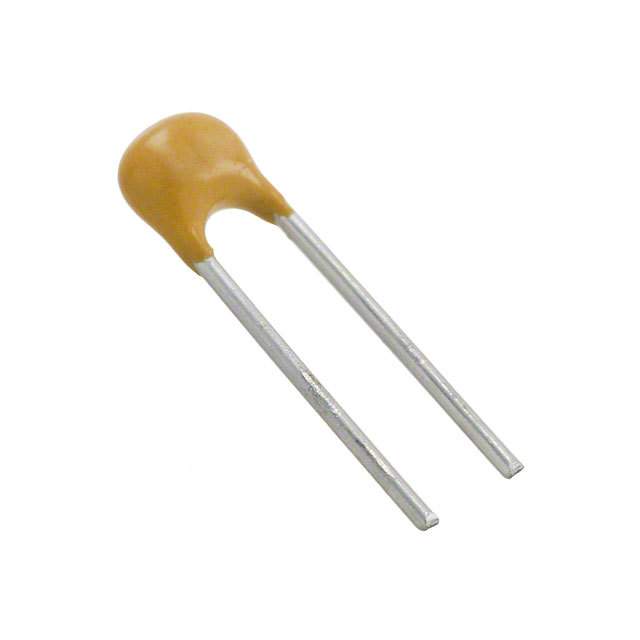

KEMET C315C180J2G5TA 多层陶瓷电容, 18pF 5%容差 200V
18 pF ±5% 200V 陶瓷器 C0G,NP0 径向
得捷:
CAP CER 18PF 200V NP0 RADIAL
立创商城:
18pF ±5% 200V
e络盟:
多层陶瓷电容, 18 pF, 200 V, Goldmax, 300 Series, ± 5%, 径向引线, C0G / NP0
艾睿:
You can&s;t go wrong with this C315C180J2G5TA multilayer ceramic capacitor from Kemet, it is the most commonly used type of capacitor for multiple applications! Users like its straight wire form. It can withstand a voltage of 200 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 18pF. This product is 3.81Max mm long, 5.33Max mm tall and 2.54Max mm deep. It has a tolerance of 5%. The C315C180J2G5TA MLCC capacitor has a radial termination style.
安富利:
Cap Ceramic 18pF 200V C0G 5% Radial 2.54mm 125°C Bulk
Verical:
Cap Ceramic 18pF 200V C0G 5% Radial 2.54mm 125C Extreme Low ESR Bag
Newark:
# KEMET C315C180J2G5TA Multilayer Ceramic Capacitor, 18 pF, 200 V, Goldmax, 300 Series, ± 5%, Radial Leaded, C0G / NP0
MASTER:
Cap Ceramic 18pF 200V C0G 5% Radial 2.54mm 125°C Bulk
额定电压DC 200 V
电容 18 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Through Hole
引脚数 2
封装 Radial
引脚间距 2.54 mm
长度 3.81 mm
宽度 3.81 mm
高度 3.14 mm
封装 Radial
引脚间距 2.54 mm
材质 NP0/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bag
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8532240060
