C0603C102J5GALTU

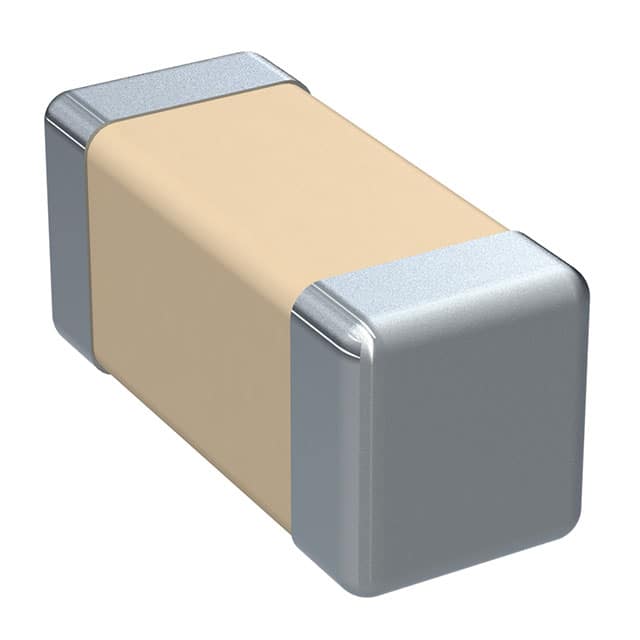

C0603C102J5GALTU图片1
C0603C102J5GALTU图片2
C0603C102J5GALTU图片3
C0603C102J5GALTU图片4
C0603C102J5GALTU图片5
C0603C102J5GALTU概述

多层陶瓷电容器MLCC - SMD/SMT 50volts 1000pF C0G 5%

1000 pF ±5% 50V 陶瓷器 C0G,NP0 0603(1608 公制)


立创商城:
1nF ±5% 50V


得捷:
CAP CER 1000PF 50V C0G/NP0 0603


艾睿:
Use its standard classification system to find out what this C0603C102J5GALTU multilayer ceramic capacitor from Kemet can do for you! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 0.001uF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. It has a tolerance of 5%.


安富利:
Cap Ceramic 0.001uF 50V C0G 5% SMD 0603 125°C Paper T/R


Verical:
Cap Ceramic 0.001uF 50V C0G 5% Pad SMD 0603 125C Extreme Low ESR T/R


C0603C102J5GALTU中文资料参数规格
技术参数

额定电压DC 50.0 V

绝缘电阻 100 GΩ

电容 0.001 µF

容差 ±5 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

引脚间距 0.7 mm

外形尺寸

长度 1.6 mm

宽度 1.6 mm

高度 0.8 mm

封装公制 1608

封装 0603

引脚间距 0.7 mm

物理参数

介质材料 Ceramic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 通用

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

数据手册

C0603C102J5GALTU引脚图与封装图
C0603C102J5GALTU引脚图

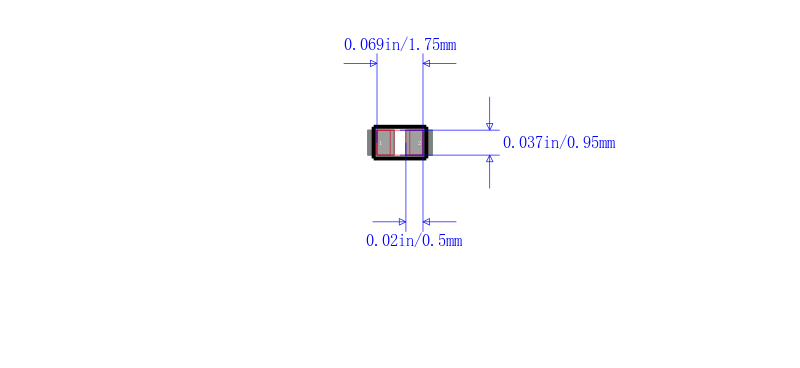

C0603C102J5GALTU封装图

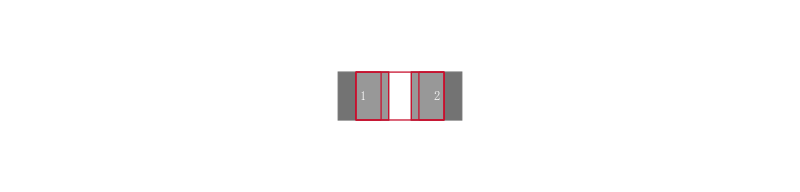

C0603C102J5GALTU封装焊盘图
在线购买C0603C102J5GALTU
型号: C0603C102J5GALTU
描述:多层陶瓷电容器MLCC - SMD/SMT 50volts 1000pF C0G 5%
替代型号C0603C102J5GALTU
型号/品牌 代替类型 替代型号对比

C0603C102J5GALTU

KEMET Corporation 基美

当前型号

当前型号

C0603C102J5GAL7867

基美

完全替代

C0603C102J5GALTU和C0603C102J5GAL7867的区别

0603N102J500CG

台湾华科

类似代替

C0603C102J5GALTU和0603N102J500CG的区别

C1608C0G1H102J080AA

东电化

功能相似

C0603C102J5GALTU和C1608C0G1H102J080AA的区别
