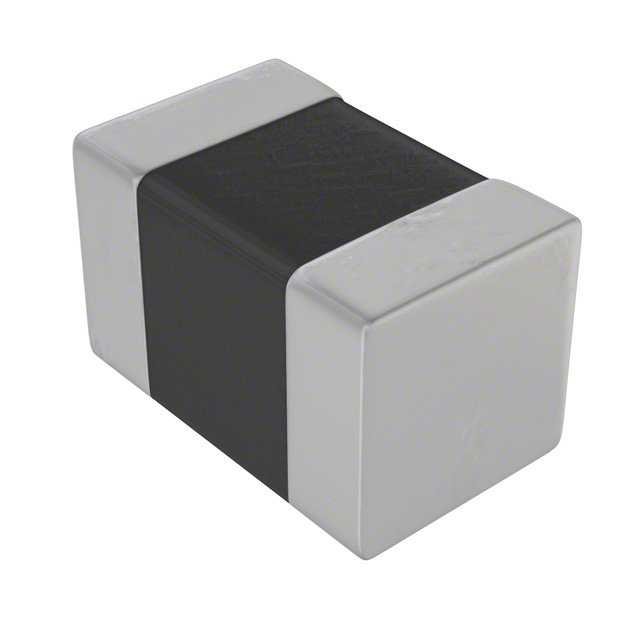

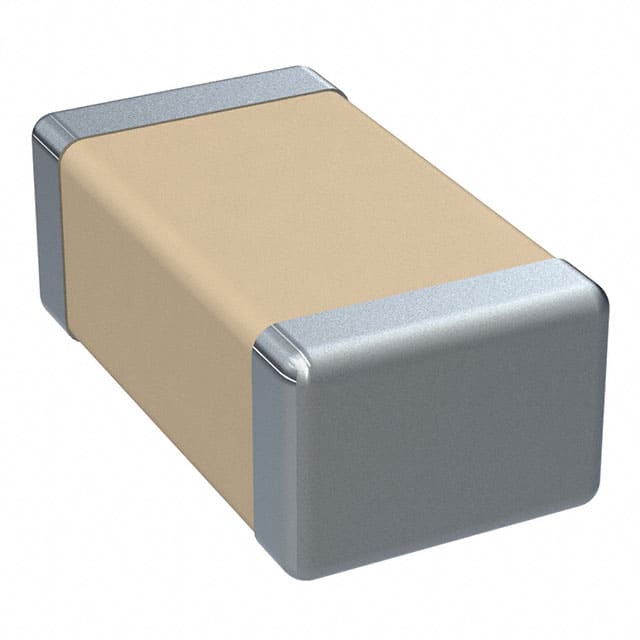

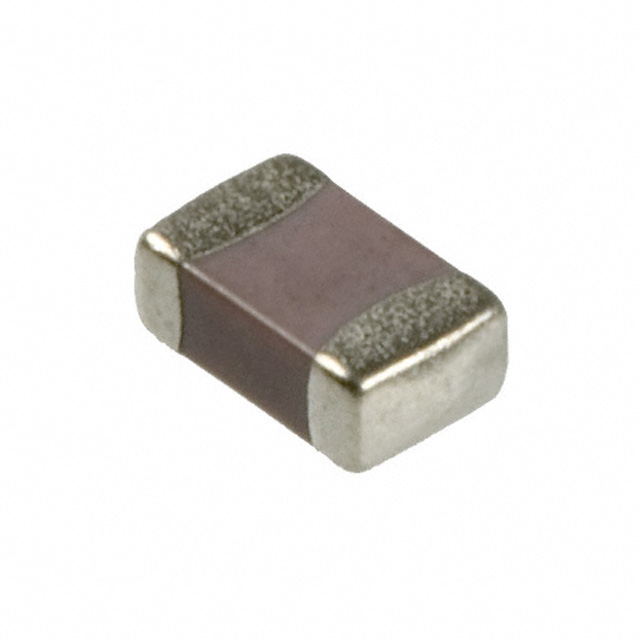

Cap Ceramic 1.8uF 10V X7R 10% SMD 0805 125℃ T/R
Ceramic chips consist of formulated ceramic dielectric materials which have been fabricated into thin layers, interspersed with metal electrodes alternately exposed on opposite edges of the laminated structure. The entire structure is then fired at high temperature to produce a monolithic block which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes. Kemet ceramic chip capacitors are offered in the five most popular temperature characteristics: C0G NP0 ,X7R, X5R,Z5U & Y5V.
额定电压DC 10.0 V
绝缘电阻 278 MΩ
电容 1.8 μF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 2012
封装 0805
引脚间距 0.75 mm
长度 2.00 mm
宽度 1.2 mm
高度 1.25 mm
封装公制 2012
封装 0805
引脚间距 0.75 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0805C185K8RACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0805C185K4RACTU 基美 | 功能相似 | C0805C185K8RACTU和C0805C185K4RACTU的区别 |
