CG/CG2 MS 系列1150 V 20 kA 表面贴装 双电极 气体放电管

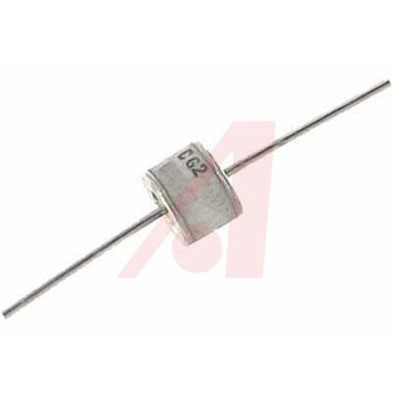

** CG2 Series Gas diskharge Tube**
Littelfuse CG2 series GDT plasma arresters are ideal for protecting equipment for which higher voltage limits and holdover voltages are necessary. Applications include communication lines, CATV equipment, test equipment, data lines, power supplies, instrumentation circuits and medical electronics.
立创商城:
1kV 脉冲：10kA GP S.A. STANDARD 1000V MS
艾睿:

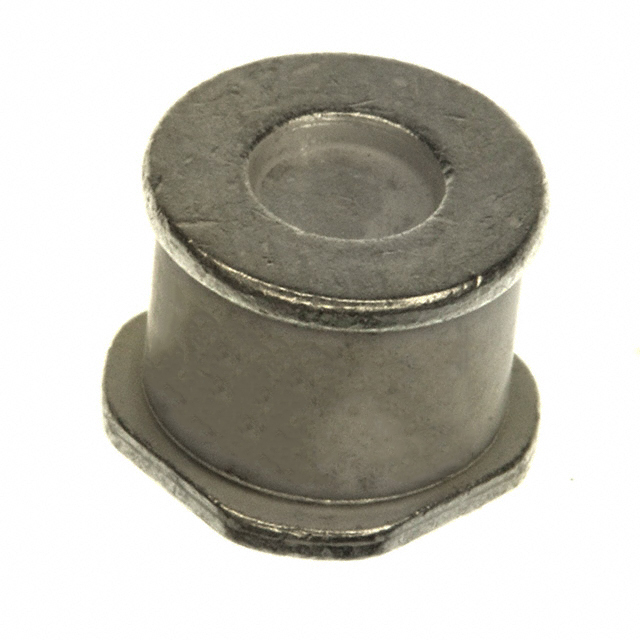

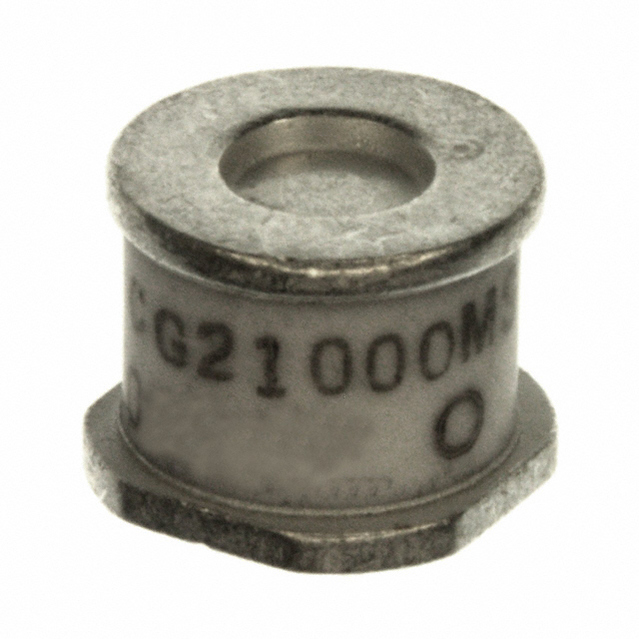

Littelfuse&s;s CG21000MS gas discharge tube is essential for protecting electronic equipment in outdoor structures. Its DC sparkover voltage is 1000 V, and its impulse discharge current 8x20 us, 10 Hits is 10 A. This item should be stored between -40 °C and 90 °C. This GDT has a minimum operating temperature of -40 °C and a maximum of 90 °C. It has 2 terminals/electrodes. The CG21000MS GDT has a solder pad termination style. Mount your GDT on a printed circuit board using surface mount technology to produce the most effective results. This product is 6.05 mm long, 8.3 mm tall and 8.3 mm deep. This part has a pitch of 5.89 mm.
Allied Electronics:
SURGE ARRESTOR; 1000 V TYP. BREAKDOWN; RUGGED CERAMIC-METAL PACKAGE; 125 DE
Chip1Stop:
Gas Discharge Tubes 1000VDC 10KADC 10AAC 1.5pF Solder Pad SMD
Verical:
Gas Discharge Tubes 1000VDC 10kADC 10AAC 1.5pF Solder Pad SMD
