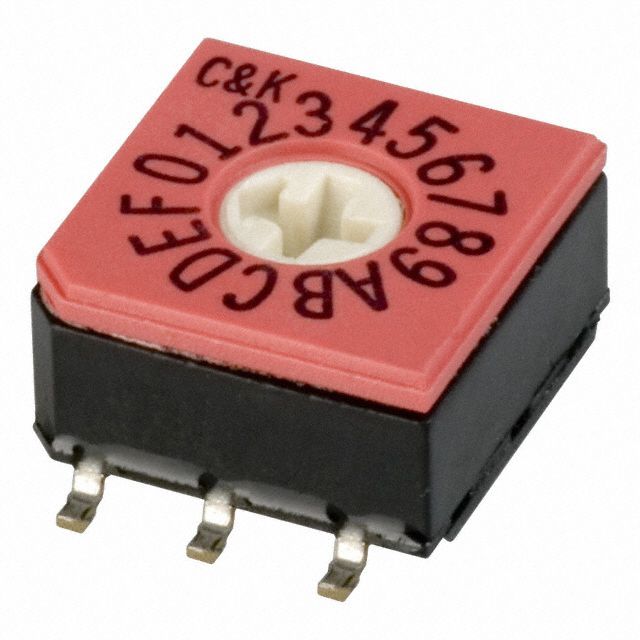

C & K COMPONENTS CD16RM0SB 旋转编码开关, SMD, 16路, 20 V, 十六进制
The is a 16-position SMD Rotary Coded Switch with hexadecimal circuit and gull wing termination. It has copper alloy with gold-plate over nickel-plate terminal and contact, white LCP flush rotary for tool actuator, black PPS base and cover.
- .
- UL94V-0 Flammability rating
- .
- 12000-cycle Electrical life
- .
- Process sealed-withstands soldering and cleaning
- .
- Compact size saves space-36% smaller than traditional 10mm DIP
- .
- Crisp, positive detent ensures actuation
- .
- -25 to 85°C Operating temperature range
触点电镀 Nickel
额定电压DC 20 V
额定电压AC 20 V
触点类型 SP3T
针脚数 16
开断电压 20.0 V
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 20VAC, 20VDC
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 SMD
长度 8.00 mm
高度 4.41 mm
封装 SMD
触点材质 Copper Alloy
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 传感与仪器, 工业, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509020
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD16RM0SB C&K Components | 当前型号 | 当前型号 |
CD16RM0CB C&K Components | 完全替代 | CD16RM0SB和CD16RM0CB的区别 |
CD16RM0SBR C&K Components | 完全替代 | CD16RM0SB和CD16RM0SBR的区别 |
CD16RM0AB C&K Components | 完全替代 | CD16RM0SB和CD16RM0AB的区别 |
