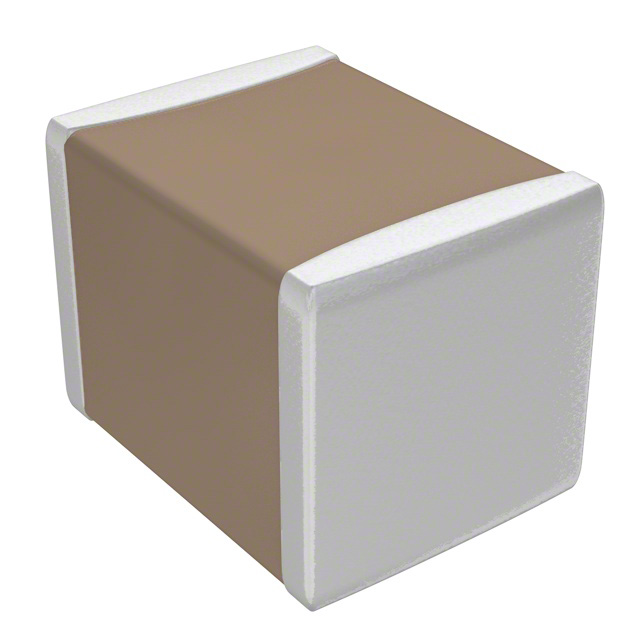

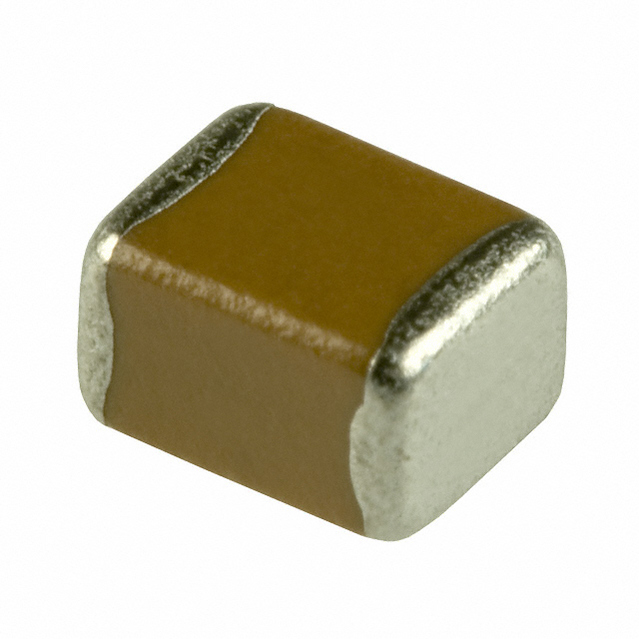

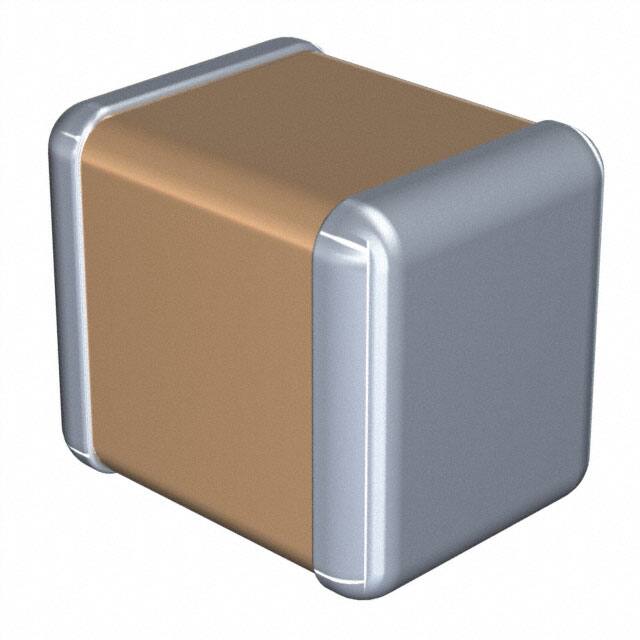

Cap Ceramic 1uF 50V X7R 10% SMD 1210 125℃ Blister T/R
1 µF ±10% 50V 陶瓷器 X7R 1210(3225 公制)
得捷:
CAP CER 1UF 50V X7R 1210
艾睿:
Get more with less with TDK&s;s C3225X7R1H105K/2.00 multilayer ceramic capacitor which uses multiple layers of ceramic and metal to act as dielectric and electrodes. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.2 mm long, 2 mm tall and 2.5 mm deep. Its capacitance value is 1uF. It has a tolerance of 10%.
MASTER:
Cap Ceramic 1uF 50V X7R 10% SMD 1210 125°C Blister T/R
Electro Sonic:
Cap Ceramic 1uF 50V X7R 10% SMD 1210 125°C Blister T/R
Win Source:
CAP CER 1UF 50V X7R 1210
额定电压DC 50.0 V
电容 1 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 3225
封装 1210

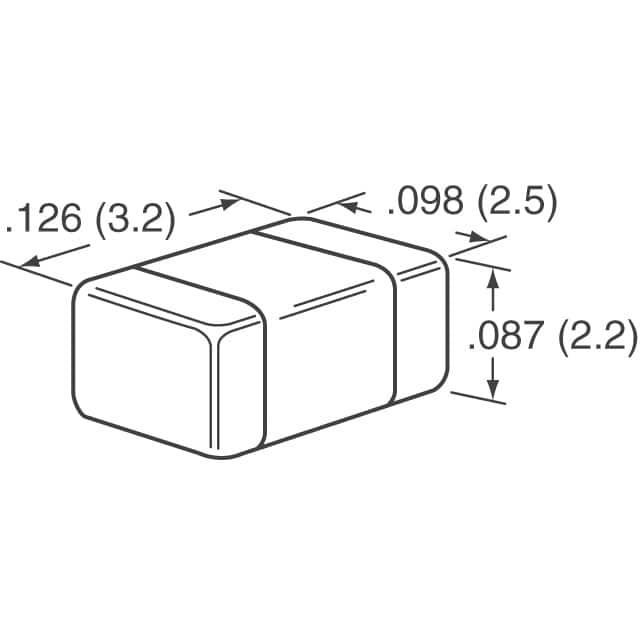

长度 3.2 mm
宽度 2.5 mm
高度 2 mm
封装公制 3225
封装 1210
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8532240020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C3225X7R1H105K/2.00 TDK 东电化 | 当前型号 | 当前型号 |
C3225X7R1H105K160AA 东电化 | 完全替代 | C3225X7R1H105K/2.00和C3225X7R1H105K160AA的区别 |
C3225X7R2A105K200AA 东电化 | 类似代替 | C3225X7R1H105K/2.00和C3225X7R2A105K200AA的区别 |
C3225X7R1H105K/1.6 东电化 | 类似代替 | C3225X7R1H105K/2.00和C3225X7R1H105K/1.6的区别 |
