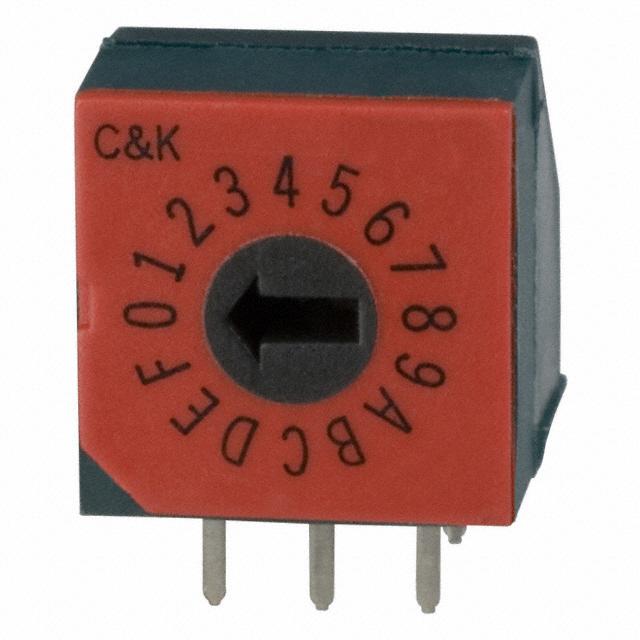

C & K COMPONENTS CRD16RM0AB 旋转开关, CRD系列, 不发光, 400 mV
Look no further! The dual in-line package switch, developed by C&K Components, can allow you to control multiple different paths on a printed circuit. It has a SP16T configuration. This DIP switch has an operating temperature range of -20 °C to 85 °C. The CRD16RM0AB DIP switch has a PC pin termination style. This product"s terminal pitch is 2.54 mm. This product is 10 mm long, 10.5 mm tall and 12 mm deep. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC.
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
触点类型 SP3T
针脚数 16
位数 1
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压 20VAC, 20VDC
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max 100 mΩ
安装方式 Through Hole
封装 DIP
长度 10 mm
宽度 10 mm
高度 10.5 mm
封装 DIP
触点材质 Beryllium Copper
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CRD16RM0AB C&K Components | 当前型号 | 当前型号 |
CRD16RM0CB C&K Components | 完全替代 | CRD16RM0AB和CRD16RM0CB的区别 |
CRD16RM0AK C&K Components | 完全替代 | CRD16RM0AB和CRD16RM0AK的区别 |
DRD16CSE 泰科 | 类似代替 | CRD16RM0AB和DRD16CSE的区别 |
