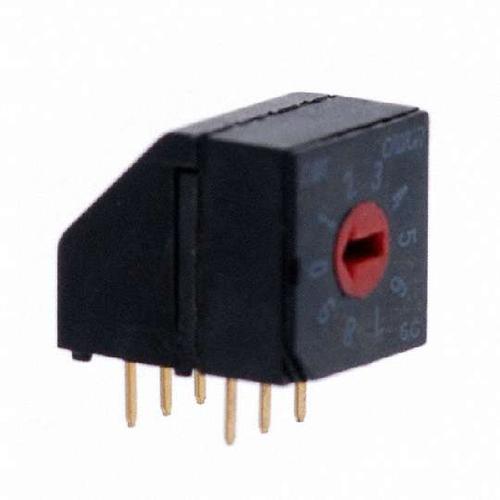

CRD10RM0AB 10位
The dual in-line package switch, developed by C&K Components, can give you electronic flow control within your printed circuit board. It has a SP10T configuration. This DIP switch has a minimum operating temperature of -20 °C and a maximum of 85 °C. The CRD10RM0AB DIP switch has a PC pin termination style. This product is 10 mm long, 10.5 mm tall and 12 mm deep. This product"s terminal pitch is 2.54 mm. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC.
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
触点类型 SP3T
针脚数 10
开断电压 5.00 V
开关电流 10 mA
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压 20VAC, 20VDC
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max 100 mΩ
安装方式 Through Hole
封装 DIP
长度 10.00 mm
高度 10.5 mm
封装 DIP
触点材质 Beryllium Copper
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CRD10RM0AB C&K Components | 当前型号 | 当前型号 |
CRD10RM0CB C&K Components | 完全替代 | CRD10RM0AB和CRD10RM0CB的区别 |
CRD10RM0SB C&K Components | 完全替代 | CRD10RM0AB和CRD10RM0SB的区别 |
CRD10RM0CK C&K Components | 完全替代 | CRD10RM0AB和CRD10RM0CK的区别 |
