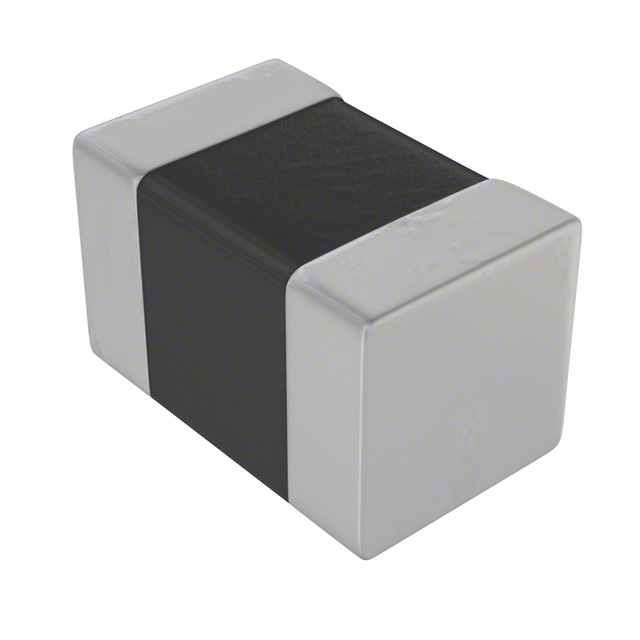

Cap Ceramic 0.018uF 25V C0G 5% SMD 0805 125℃ T/R
SMD Comm C0G, Ceramic, Commercial Grade, 0.018 uF, 5%, 25 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0805
得捷:
CAP CER 0.018UF 25V NP0 0805
艾睿:
Due to the use of different ceramic dielectric materials used in this C0805C183J3GACTU multilayer ceramic capacitor from Kemet, you can choose the right capacitor based on capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This product is 2 mm long, 0.78 mm tall and 1.25 mm deep. Its capacitance value is 0.018uF.
安富利:
Cap Ceramic 0.018uF 25V C0G 5% SMD 0805 125°C Punched Paper T/R
Verical:
Cap Ceramic 0.018uF 25V C0G 5% Pad SMD 0805 125C Extreme Low ESR T/R
额定电压DC 25.0 V
绝缘电阻 55.556 GΩ
电容 0.018 µF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
引脚间距 0.75 mm
长度 2 mm
宽度 2 mm
高度 0.78 mm
封装公制 2012
封装 0805
引脚间距 0.75 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
